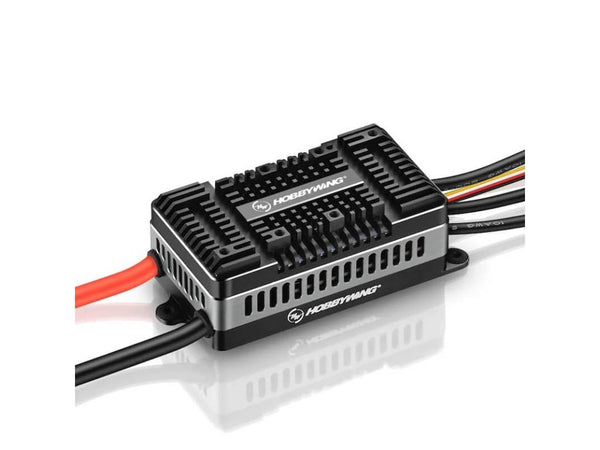

Hobbywing Platinum 260A HV SBEC V5 ESC : HW30203100
The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side "window" design. The air is able to quickly pass through the inside of the ESC and take away the heat generated by the internal circuit board. This innovative air duct design is able to generate airflow on the entire ESC from the cooling fan. Overall, significantly improving the capability of heat dissipation; The switchable no/single/double fan installation design allows users to switch between extreme weight and extreme heat dissipation.
Note:The double-sided hollow heat dissipation structure is patent pending.
Built-in 12V Switch BEC, stronger output capability instantaneous high current with a built-in 12V programmable BEC. The additional buffers enhances the output capability from 8.4V to 12V (5-12V adjustable) The high-power BEC has added an anti-reverse circuit to use parallel with external 2S batteries at the same time to provide double protection.
Built-in anti-spark circuitry. The built-in anti-spark circuitry effectively eliminates the electric spark generated during the connectors are plugged to a battery, and prolongs the life-span of the connectors.
Specification
Wires and Connectors
ESC Programing via
Firmware : Firmware Upgrade Supported
Telemetry Function : Mikado VBar;Futaba S.Bus2; MSH Brain; iKon and etc.
Size : 89 x 50 x 34mm
Weight : 297g (With wires)
Application scope : 700-800 class electric helicopter(main rotor length 690-880mm),or fixed-wing
