Align T-Rex 500 Spares

Align T-Rex 500L Linkage Rod (A) Set : H50Z001XXT

Use for T-REX 500L.Arm B x 2 (M2x36mm)Ball Link x 4

H50Z001XXT£5.25

Align 425 Carbon Fiber Blades - Blue (Slight Seconds) : HD420GQCB

** PLEASE NOTE THESE ARE SECOND QUALITY SO MAY HAVE SOME SMALL COSMETIC FLAWS ** Use for T-REX 500 Flybarless System. The 425 carbon fiber Composites main blades are designed...

HD420GQCB£17.99

Sold Out

500 DFC Main Shaft : H50185T

Use for T-REX 500DFC (H50181).500DFC Main shaft x 2M2.5 nut x 2Socket collar screw x 1(M2.5x19mm)Socket collar screw x 1(M2.5x16mm)Weight:80g

H50185T£14.99

BEARING (MR688ZZ) (2) - TREX 500 : H50067T

Use for bearing block.Use for T-REX 500.Bearing MR688ZZ x 2(Φ8xΦ16x5mm)

H50067T£6.99

DAMPER RUBBER/BLACK 85 - TREX 500 : H50022T

Use for T-REX 500.Damper rubber-black 80° x 2(Φ5.9xΦ11.1x4mm)Spacer x 2(Φ6.1xΦ10.5x1.5mm)

H50022T£4.50

Align T-Rex 500X Tail Belt Feathering Shaft (2) : H50T014XXT

Use for T-REX 500X.Tail Rotor Shaft Assembly(F4x62.9mm/21T) x 2

H50T014XXT£9.99

Align T-Rex 500X Metal Control Arm Set : H50H006XXT

6061-T6 Aluminium alloy material and CNC processed.Use for T-REX 500X.Specification:500EFL Metal lever x 2500 Radius x 2Socket button head screw x 2 (M2.5x12mm)Socket button head screw x 4 (M2x5mm)Bearing 682XZZ...

H50H006XXT£21.25

Align Motor Slant Thread Pinion Gear 12T - T-Rex 500L : H50G004XXT

Use for T-REX 500L.Modified content for shopify channel.Highly enhanced structural strength, effectively increases the torsional capability.Specification: Motor Slant Thread pinion gear 12T x 1 M4 set screw x 2 (M3x3mm)....

H50G004XXT£6.99

Sold Out

D5AF Servo Horn (Old H50113T) : HSP51001

D5AF Servo Horn (Old H50113T)Suitable for servos of ALIGN DS510/DS520/DS610/DS620/Futaba seriesQuantity: 3 pcs

HSP51001£3.50

Sold Out

Align T-Rex 500 Metal Tail Pitch Assembly : H50082CT

Use for T-REX 500X/500L.6061-T6 Aluminum alloy material and CNC processed.Specification:Control link x 2(F5.5xF12.7x3.9mm)Metal T type arm x 1(F25.5xF8x9.25mm)Washer x 1(F6xF7.4x3mm)Collar A x 2(F2xF3x4mm)Collar screw(Black) x 2(M2x8mm)Collar screw(Gold) x 2(M2x8mm)Bearing MR106ZZ...

H50082CT£15.75

500E PRO Main Shaft Spacer : H50157T

Use for T-REX 500E PRO / 500EFL PRO.Main shaft spacer(0.3) x 1(Φ8.1xΦ12x0.3mm)Main shaft spacer(0.5) x 1(Φ8.1xΦ12x0.5mm)Weight:0.4g

H50157T£3.50

500E PRO Frame Hardware : H50172T

500E PRO Frame Hardware

H50172T£6.25

Align T-Rex 500X Carbon Fibre Tail Linkage Rod : H50T013XXT

Use for T-REX 500X.Specification:500X Tail Control Guide x 1 (F22.5xF38.14x7mm)500X Carbon Tail Control Rod x 1 (F2.1xF4x520mm)500 Linkage (A) x 2 (F1.96x13.5mm)Socket button head self tapping screw x 1 (T2.6x10mm)Ball...

H50T013XXT£12.50

500DFC Linkage Rod Set : H50192T

Use for T-REX 500DFC(H50181).500DFC Linkage rod A x 4(M2.5x12mm)Elevator ball link x 4

H50192T£6.25

Sold Out

ONE-WAY BEARING - TREX 500 : H50020T

Use for T-REX 500.One-way bearing shaft HF1012 x 1Used in the main gear of the T-Rex 500.Also used as the one way bearing in the original T-rex 600 nitro clutch...

H50020T£6.99

RADIUS ARM (2) - TREX 500 : H50014T

Use for T-REX 500.Radius arm x 2

H50014T£3.50

Align T-Rex 500XT Torque Tube : H50T018XXT

Use for T-REX 500XT.500XT Torque tube x 1(F4.5xF6x533mm)500 Torque tube end x 2(F7.5x25mm)500XT Torque tube bearing holder x 1(F10xF18.2x10mm)Bearing MR106ZZ x 1(F6xF10x3mm)

H50T018XXT£10.50

Align T-Rex 500X Tail Rotor Holder : H50T007XXT

Use for T-REX 500X.Specification:500X Metal Tail Rotor Holder x 1M4 Screw x 1MR84ZZ C0 Bearing (F4xF8x3mm) x 4Thrust Bearing F4-8M (F4xF8x3.3mm) x 2Washer (F2.6xF5.8x0.6mm) x 2Socket screw (M3x12mm) x 2Socket...

H50T007XXT£25.50

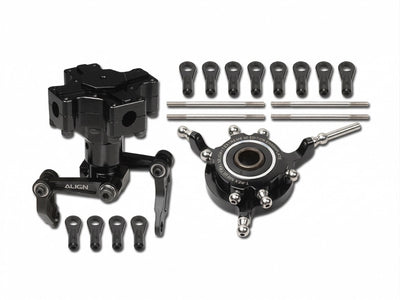

4 Bladed Head Assembly - 500 : H50145T

Suitable for T-REX 500 series / 500 Scale Fuselage.Following the release of multiple 500 class scale fuselages, Align have introduced a highly scale 4-bladed main rotor head. The complete head...

H50145T£79.99

Sold Out

METAL VERTICAL STABILISER MOUNT - 500 : H50141T

METAL VERTICAL STABILISER MOUNT - 500

H50141T£5.25

M2.5 Socket Collar Screw : H50187T

Suitable for T-REX 500DFC/500PRO/500FL PRO.Socket collar screw x 4(M2.5x19mm)Washer x 4(F2.5xF4.5x0.2mm)Weight:3.45g

H50187T£2.75

Align T-Rex 500X Tail Rotor Hub Set : H50T006XXT

Use for T-REX 500X.Specification:500X Tail Rotor Hub x 2M4 Screw (M4x3mm) x 2Washer (F2.6xF5.8x0.6mm) x 4Socket Collar Screw (M2.5x6mm) x 4

H50T006XXT£6.99

500DFC Head Damper : H50188T

Use for T-REX 500DFC.Manufactured utilizing POM material, sleek surface, with superior anti-wear characteristic.500DFC Head Damperx 4(Φ6xΦ11x4mm)

H50188T£6.25

500E PRO Main Gear Case Set : H50003AT

500E PRO Main Gear Case Set : H50003AT6061-T6 Aluminum alloy material and CNC processed.Use for: T-REX 500E 500ESP 500E PRO 500EFL PRO Includes: One-way bearing (XL52A15) x 1(Φ10xΦ14x12mm) Main gear...

H50003AT£23.75

BEARING (684ZZ) (2) : H60103

Use for tail drive gear assembly.Use for T-REX 500/600.Bearing 684ZZ x 2(Φ4xΦ9x4mm)

H60103£6.99

LANDING SKID : H50122T

Use for T-REX 500.Landing skid x 2

H50122T£5.25

500E PRO Control Link : H50175T

Use for T-REX 500E PRO / 500EFL PRO.Must use with:500PRO Metal Tail Pitch Assembly(H50082B)Control link x 2Collar A x 2(Φ2xΦ3x4mm)Collar Screw x 2(M2x8mm)Weight:1.2g

H50175T£6.25

Align 500EFL PRO Metal Main Rotor Holder Arm - Red : H50152QRT

Suitable for T-REX 500EFL PRO / 500L.6061-T6 Aluminum alloy material and CNC processed.Metal Main rotor holder arm x 2Socket collar screw x 4(M3x6mm)Linkage ball B(M3x3) x 2Weight:12.1g

H50152QRT£13.25

Align T-Rex 500X Linkage Ball Set : H50Z004XXT

Use for T-REX 500XSteel ball parts is made of rigid stainless steel, features wear-resisting, and anti-oxidization. Therefore this refitting component is absolutely helpful for the accuracy of flying movement control...

H50Z004XXT£9.99

Sold Out

Align T-Rex 500X CCPM Metal Swashplate : H50H009XXT

Suitable for T-REX 500X.6061-T6 Aluminum alloy material and CNC processed.Specification:CCPM metal swashplate set x 1500 Long Linkage ball (M2.5x3) x 1 (4.75x25.5mm)Linkage ball B (M2.5x3) x 2 (F4.75x9.77mm)Linkage ball B...

H50H009XXT£29.99

Sold Out

Align T-Rex 500X Main Rotor Holder : H50H005XXT

Use for T-REX 500X.Specification:500 V2 Main Rotor Holder x 2Bearing (MR126ZZ) (F6xF12x4mm) x 4Socket Collar Screw (M3x20mm) x 2M3 Nut x 2

H50H005XXT£26.99

Align T-Rex 500XT 130T Autorotation Tail Drive Gear : H50G010XXT

Use for T-REX 500XT.500XT Autorotation tail drive gear x1 (M0.7)

H50G010XXT£8.39

Align T-Rex 500X Stabilizer Belt Set : H50T011XXT

Align T-Rex 500X Stabilizer Belt Set : H50T011XXTUse for T-REX 500X.Includes: Metal Stabilizer mount (Upper) x 1 Metal Stabilizer mount (Lower) x 1 Socket screw x 4 (M2.5x10mm) Washer x...

H50T011XXT£17.75

Align T-Rex 500X Stabilizer Mount : H50T010XXT

Align T-Rex 500X Stabilizer Mount : H50T010XXTUse for T-REX 500X.Includes:Carbon Fiber Stabilizer mount x 1

H50T010XXT£12.50

Align T-Rex 500X Rotor Housing : H50H004XXT

Use for T-REX 500X.6061-T6 Aluminum alloy material and CNC processed.Specification:500EFL V2 Metal main rotor housing x 1500 Feathering shaft sleeve x 1 (F6xF8x26mm)Damper rubber x 2 (F6xF11x4m)Spacer x 2 (F6.1xF10.5x1.5mm)Socket...

H50H004XXT£23.50

Align T-Rex 500L Linkage Ball Assembly : H50Z002XXT

Align T-Rex 500L Linkage Ball Assembly : H50Z002XXTUse for:T-REX 500LSteel ball parts is made of rigid stainless steel, features wear-resisting, and anti-oxidizationIncludes: Φ4.7 Linkage ball B(M2.5x3) x 1 (4.75x25.25mm) 500...

H50Z002XXT£6.99

Align T-Rex 500XT Tail Boom Mount Set

Use for T-REX 500XT.500XT Tail boom mount(L) x 1500XT Tail boom mount(R) x 1500X Hex mounting bolt x 4(M2.5x47mm)

H50T016XXT£13.99

Bearing (MR95ZZ x4) : H60088T

H60088T£6.25

Align 425mm Carbon Fibre Blades - Black : HD420KT

Align 425mm Carbon Fibre Blades - Black : HD420KTSuitable for T-REX 500 series.The 425 3K carbon fibre main blades are designed specifically for extreme 3D flying, featuring both high agility...

HD420KT£23.99

Sold Out
