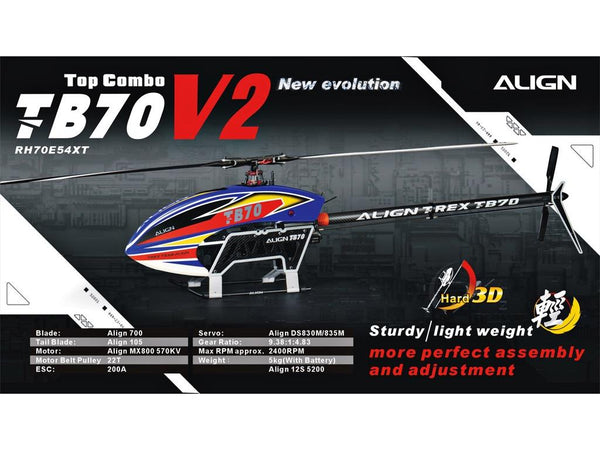

Align TB70 V2 Top Combo : RH70E54XT
Electric equipment included
- Platinum HV 200A V4 Brushless ESC x 1
- 800MX Brushless Motor(570KV/4530) x 1
- DS830M High Voltage Brushless Servo x 3
- DS835M High Voltage Brushless Servo x 1RH70E23XW
Specification
- Length: 1356mm
- Height: 358mm
- Width: 187mm
- Main Blade Length: 650-730mm
- Main Rotor Diameter: 1542mm
- Tail Length: 105-115mm
- Tail Rotor Diameter: 279mm
- Motor Belt Pulley: 22T
- Belt Pulley: 50T
- Front Drive Main Shaft: 15T
- Main Drive Gear: 62T
- Autorotation Tail Drive Gear: 27T
- Tail Drive Gear: 23T
- Drive Gear Ratio: 9.38:1:4.83
- Max RPM(approx.): 2400RPM
- Flying Weight(With Battery): Approx. 5kg (ALIGN 12S 5200mAh)
Accessories included
- TB70 V2 Kit Set x 1 set
- 700 Carbon Fibre Blades x 1 set
- 22T Motor Belt Pulley x 1
- 105 Carbon Fibre Tail Blades x 1 set
- 800MX Brushless Motor(570KV/4530) x 1
- DS830M High Voltage Brushless Servo x 3
- DS835M High Voltage Brushless Servo x 1
- Platinum HV 200A V4 Brushless ESC x 1
Radio transmitter and electronic equipment required for assembly
- Transmitter(6-channel or more, helicopter system)
- Receiver(6-channel or more)
- RCC-6CX Intelligent Balance Charger
- 22.2V 6S 4000~5800mAh Li-Po Battery x 2
- Digital Pitch Gauge
- Multi-function Tester
- Flybarless System
