Align DS655 Digital Servo : HSD65501T

Ultra-speed servo for instant tail control reaction. (0.05sec/60 deg).

Ultra Performance Coreless Motor with fast reaction and low current.

Hardened high strength superalloy gears that increase the lifetime.

Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.

Supports digital & analog control signal.

Powerful and precise servo, suitable for T-Rex 600/700 rudder use.

Stall torque:4.5kg.cm(4.8V) - 0.5kg.cm(6.0V)

Motion speed:0.06sec/60°(4.8V) - 0.05sec/60°(6.0V)

Rating voltage:DC 4.8-6V

Temperature range:-20°C~+60°C

Dimension:40.1 x 20.1 x 37.3mm

Weight:56g

1520µs standard band

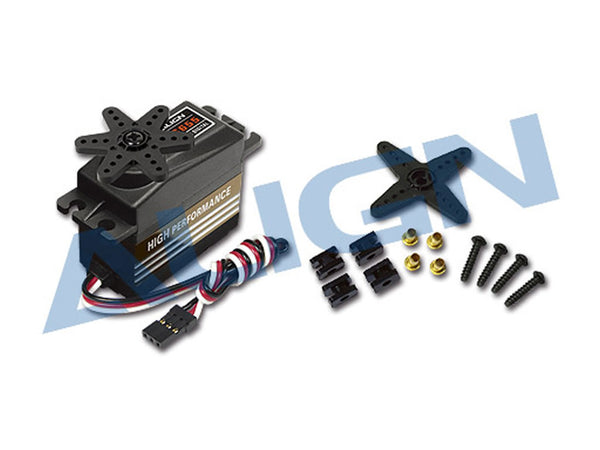

Accessories:

Servo rudder piece x 2

Set screw x 1

Rubber damper x 4

Brass grommet x 4

Socket button head tapping screw × 4(T2.6x12mm)
