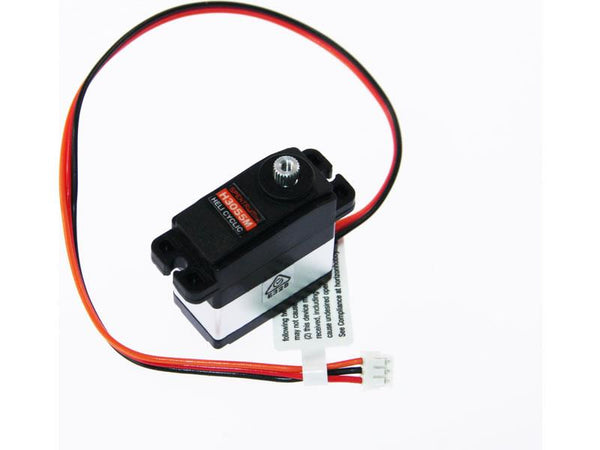

Spektrum Sub-Micro Digital Metal Gear Servo with Micro Connector : SPMSH3055M
Note: This servo comes fitted with a micro connector, not a standard servo plug, as is used on the Blade 230S Smart.
The same servo with a standard servo plug fitted to it is part number SPMSH3055.
Specification:
- Application: 250 - 450 size heli, cyclic
- Bearing: Single
- Bushing Or Bearing: Bearing
- Deadband: 2
- Gear Type: Metal
- Servo Speed: 4.8V 0.067 sec/60 deg, 6V 0.053 sec/60 deg
- Maximum Servo Torque: 20-39 oz-in
- Part Type: Electronics
- Product Height: 1.17" (30 mm)
- Product Length: 0.91" (23 mm)
- Product Weight: 0.46oz (12.9g)
- Product Width: 0.47" (12 mm)
- Programmable: No
- Servo Operating Voltage: 4.8 - 6.0V
- Servo Size Category: Mini and Micro
- Servo Type: Digital
- Torque: 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
- Wire Gauge: 22 AWG
