*** NOTE THIS IS A PRE-ORDER, RELEASE IS EXPECTED END OF MARCH AND WILL BE SHIPPED THE DAY THEY ARRIVE ***
Key features
- FBL unit for R/C Helicopters
- Stabilisation unit for R/C Fixed Wings
- Integrated Wave receiver
- Automatic Rescue System
- Pressure Sensor and Extended logging
- Can be used with other external receivers, same as Spirit 3
Product Description

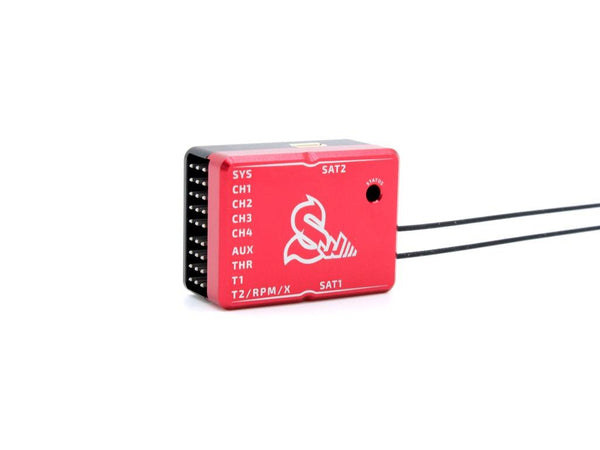

Spirit W3 is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary package!
It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit W3 consists from Spirit 3 hardware and Spirit Wave receiver.
Manual available at the Wiki pages.
Outstanding ARM M7 processor
M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing
features.
This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need.
Real-Time Logging capability
Logging of everything - that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life!
You can see how your model was flying in the air thanks to 3D Rendering inside the Spirit Settings software.
Pressure Sensor
Yes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilised in a various of ways such as Altitude hold or even Automatic Rescue system.
Industry-leading Motion Sensor
Motion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it
yourself now.
Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line.
Redundant PowerTrain
With Spirit 2 and then evolved in Spirit 3 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit W3 design was enhanced to minimise voltage drops even for peripherals!
Highlights
Control part
- For Helicopters and Planes
- Spirit Governor
- Top-notch 20-bit IMU Sensor
- Performance-line ARM F7 processor
- Precise pressure sensor for Altitude measurement
- Dedicated Memory Chip for detailed logging
Receiver part
- Spirit Wave 2.4Ghz full-range telemetry receiver
- Full featured 30+ channels available
- Blazing fast 333 Hz transmission
- High interference immunity
- BEC Voltage measurement
Hardware
- Very rigid, CNC milled, anodised and sandblasted enclosure
- Colour: Red and Black, matt
- Material: High quality AL6061-T6
- Dimension: 36.8x27.15x15.8mm, weight: 23g
- Power supply: 3 - 15V @ 55mA
- Operating temperature: -10°C to 50°C
- Latest generation, Ultra Fast
- 32bit ARM processor: 468 DMIPS
- MEMS sensor with 20bit IMU (rotation up to 4000°/s !)
- Gold plated PCB with Pb-Free soldering
- Laser Engraved labels for perfect visibility.
- 2x independent telemetry ports for Spirit Wave sensors
- 3x connector for power supply, 4x for servos
- All-pin protection
- Redundant internal power chain for maximum safety
- Excessive tolerance for brown-outs
- Embedded Spirit RX 2.4 Ghz Telemetry Receiver
- Precise Pressure Sensor for Altitude Measurement
- RealTime Logging Feature for detailed flight recording
- 2x 20cm Full-range antennas
- Max. output power: 30 dBm
- Receiver sensitivity: -106 dBm
- Third-party receiver supported – Wave receiver can be turned off
- Replaceable and Detachable Antennas
Package content
- Spirit W3 unit
- USB interface (1m)
- Bind plug
- 4x 3M VHB double sided adhesive tape
Warranty
- 2 year warranty for the original purchaser
- 50% discount for damage replacement of the unit
Features
- Super-Smooth Flight control
- Paddle Simulation with inexpressible feeling
- Classic Flybar Mechanics support
- Extreme vibration immunity for all helicopter types
- Spectrum Analysis for model diagnostics
- Flight Log with recorded events
- Easy configuration with setup wizard
- Smartphone or tablet support via Bluetooth and WiFi (Modules are sold separately)
- Spirit RX Telemetry
- Support for ESC Telemetry - HobbyWing, Kontronik, Castle, YGE, Scorpion, OMP Hobby, Graupner, XDfly
- ESC Setup (selected brands) with Spirit Wave
- Revolutionary GeoLink support (GPS/GNSS, vario, logger)
- Available for Windows, OSX, Linux, Android, iOS, WP, SailfishOS, FreeBSD, Raspberry Pi and more
- Stabilisation for scale pilots and beginners
- Reliable, full-featured and highly proven Rescue system
- Integrated Bank Switching
- Automatic Rescue Mode
- Governor for Electric, Nitro and Gasser Helicopters
- BEC Tester with load verification
- Spirit Aero support
- Support for all servo types : 1520/960/760us @ 50 - 700Hz
- CCPM 90/120/135/140°, Mechanical Mix and 45° Phasing
