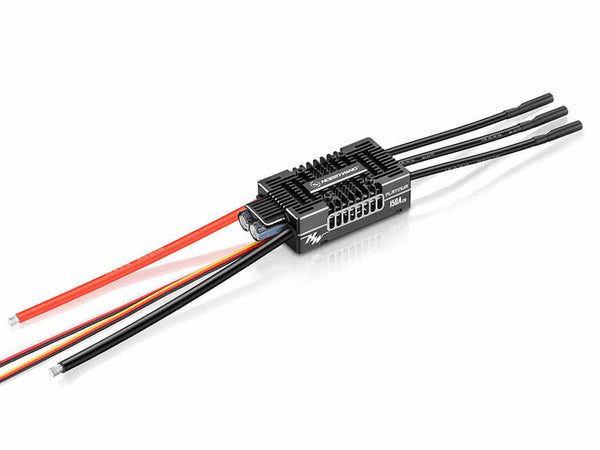

Hobbywing Platinum 150A V5.1 Speed Control : HW30203501

Hobbywing Platinum 150A V5.1 Speed Control : HW30203501

Specification:

• Brushed/Brushless: Brushless
• High Voltage/Regular: Regular
• Cont./Peak Current: 150A/180A
• Input Voltage: 3-8S Lipo
• BEC Output: Switch Mode: 5-12V & Cont. 10A,Peak 30A
• Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output Wires: Black-12AWG-100mm*3
• Input Connectors: No
• Output Connecotors: 4.0mm Gold Connectors (Female)
• ESC Programing via Transmitter: Not Supported
• ESC Programing via LED Program Card: Not Supported
• ESC Programing via LED Program Box: Not Supported
• ESC Programing via LCD Program Box: Supported
• ESC Programing via OTA Programmer: Supported
• ESC Programing via Program Port: Separate Program Port
• Firmware Upgrade: Supported
• Telemetry Function: Mikado VBar; Futaba S.Bus2; etc.
• Size: 83.2*37.1*22.5mm (without fan)
• Weight: 150.4g (with wires, no fan)
• Application Scope: 520-580 class electric helicopter (main blade length 520-580mm) or fixed-wing
