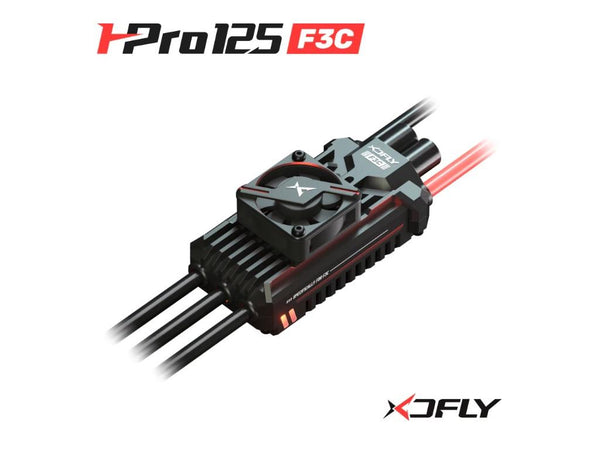

XDFly HPRO 125A ESC 6-14S SBEC F3C 600-700 ESC : XDF125AF3C

XDFly HPRO 125A ESC 6-14S SBEC F3C 600-700 ESC : XDF125AF3C

Key Features:

• Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
• Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
• Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
• The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
• The smart temperature controlled fan will only start when the temperature exceeds 40 degrees, ensuring a quiet environment during the adjustment.
• With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
• Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
• The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
• With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
• Equipped with colourful LED lights including five optional colours for users: red, green, blue, yellow, and white, which indicate the ESC status through flashing modes.
• Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

Specification:

• Model : HPRO 125A 6-14S SBEC
• Continuous Current(A) : 125A
• Burst Current(A) : 170A
• Input Voltage : 6-14S Lipo
• BEC Output : 6-12V Adjustable; Current Cont.10A, Peak 35A
• Size : 90x43x25mm
• Weight : 166g
• Power Wire : 10 Gauge 125mm Red/Black
• Motor Wire : 10 Gauge 160mm Black
• Programming Way : XDFly Android&iOS APP/VBCT/E/RF2/Jeti
• Telemetry : VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon
• Applications : F3C Model and 600-700 Class electric helicopters or fixed-wing aircrafts
