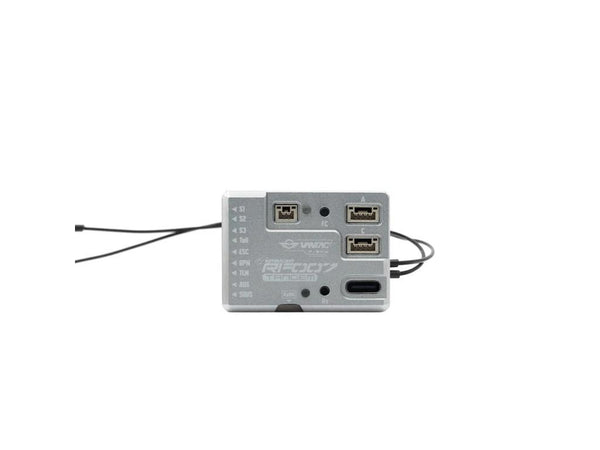

FrSky Vantac RF007 Rotorflight Flight Contoller (TD Version) : 03021863
Specifications
- Flight Controller Firmware: Rotorflight 2.x
- Dimension: 43.5×31.2×13.7mm
- Weight: 25.2g
- RF007 TANDEM: Built-In 2.4G&900M Dual-Band TD MX receiver
- Operating Voltage Range: 5-16V
- Operating Current (FC Only): 125mA@5V
- Voltage Measurement Range via AIN (External device): 0-80V
- RxUG Port: For Upgrading Internal RX Firmware (In case of OTA upgrade failure)
Note: When powering this RxUG port, do not introduce additional power input from other ports to ensure the safe operation of the connected devices.
- MCU: STM32F722RET6
- Gyroscope (IMU): ICM-42688P
- Barometer: SPL06-001
- Blackbox Flash: 128MB
- Servo Ports: Servo 1, Servo 2, Servo 3, Tail
- ESC Ports: ESC (Throttle), RPM (Sensor), TLM (ESC Telemetry or other functions)
- Other Ports: AUX and SBUS Out/In
- Expansion Ports: Port A, C, and RxUG
Features
- Runs Rotorflight 2.x Helicopter Control Software
- Built-In FrSky FBUS-Capable Receiver (TW Protocol)
- Robust CNC Aluminium Case, Functional Heatsink for MCU
- STM32F722 Microcontroller for Power and Flexibility
- Precision Barometer, 3-Axis Gyroscope and 3-Axis Accelerometer
- 128MB Blackbox Function for Tuning/Troubleshooting
- 9 Primary Main Header Pins for Flexibility and Power Distribution
