Mikado Scorpion HK3-4020-1100KV (04604)

*** SPECIAL ORDER, PLEASE ALLOW 1-2 WEEKS FOR SHIPPING ***

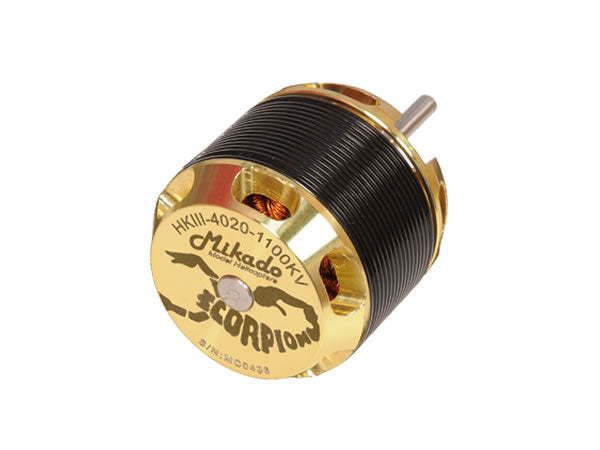

Mikado Scorpion HK3-4020-1100KV

Custom made motor for LOGO 500

• for 6S Lipo with pinion 12/13 teeth modul 0,7
• two different motor mount positions possible: 4x25 / 4x30
• Motorshaft: 5mm x 32mm
• Weight: 302 gr

• technical data:

  Stator Diameter	40 mm (1.56 in)
  Stator Thickness	20 mm (1.024 in)
  No. of Stator Arms	12
  Magnet Poles	10
  Motor Wind	3T/4T Delta
  Motor Kv	1100KV RPM / Volt
  No-Load Current (IO/8.4v)	3,15 Amps @10V
  Max Continuous Current	78 Amps
  Max Continuous Power	1640 Watts
  Weight	302 Grams (15.08 oz)
  Outside Diameter	49.9 mm (1.9 in)
  Shaft Diameter	5.98 mm (0.23 in)
  Body Length	46,8 mm (2.38 in)
  Overall Shaft Length	78,7 mm (3.73 in)
  Max Lipo Cell	6s
