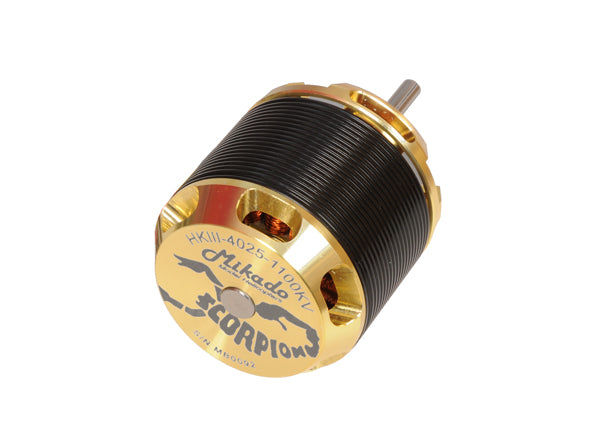

Motor Scorpion HKIII 4025-1100 Logo 500/500SE/550SX (04349)
*** SPECIAL ORDER, PLEASE ALLOW 1-2 WEEKS FOR SHIPPING ***
Custom made motor for LOGO 500 / LOGO 500SE / Logo 550SX
- For 6S Lipo with pinion 12/13 teeth modul 07
- Two different motor mount positions possible: 4x25 / 4x30
- Motorshaft: 5mm x 30mm
- Weight: 354 gr.
- Technical data:
- Stator Diameter : 40 mm (1.56 in)
- Stator Thickness : 25 mm (0.975 in)
- No. of Stator Arms : 12
- Magnet Poles : 8
- Motor Wind : 3T/3T Delta
- Motor Kv : 1100KV RPM / Volt
- No-Load Current (IO/8.4v) : 3,19 Amps
- Max Continuous Current : 100 Amps
- Max Continuous Power : 2200 Watts
- Weight : 354 Grams (10.59 oz)
- Outside Diameter : 48.9 mm (1.9 in)
- Shaft Diameter : 4.98 mm (0.19 in)
- Body Length : 51,8 mm (2.01 in)
- Overall Shaft Length :83.7 mm (3.3 in)
- Max Lipo Cell : 6s
