Align DS835M High Voltage Brushless Servo : HSD83502T

Align DS835M High Voltage Brushless Servo : HSD83502T

Designed specifically for helicopters, utilizes brushless motor for fast speed, high torque and super efficiency reaction, allowing helicopter to perform with faster and higher precision.

The drive gears are made of hardened steel and have improved machining accuracy, allowing for precise and seamless gear engagement with minimal clearance. The gear surface is wear-resistant, with low clearance and a long service life.

Rudder servo with 0.028sec/60° ultra high speed response, pushing the extreme.

Utilises brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.

Supports 8.4v high voltage to provide optimal speed and torque performance of the brushless servo.

Designed specifically for helicopters, with highest specifications on the market: 0.028sec/60°ultra fast speed and 12.5kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.

Ultra high signal resolution for excellent precision and smoothness.

Brand new high voltage brushless servo equipped new CNC machined aluminium case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.

• Supports both analog and digital control signals.
• Suitable for TB70 / TN70 Rudder Servo.
• Stall torque: 010.0kg.cm(7.4V)
• Stall torque: 12.5kg.cm(8.4V)
• Motion speed: 0.030sec/60°(7.4V)
• Motion speed: 0.028sec/60°(8.4V)
• Rating voltage: DC 7.0-8.4V
• Temperature range: -20°C~+60°C
• Line length: 370mm
• Dimension: 40 x 20 x 39 mm
• Weight: 72g

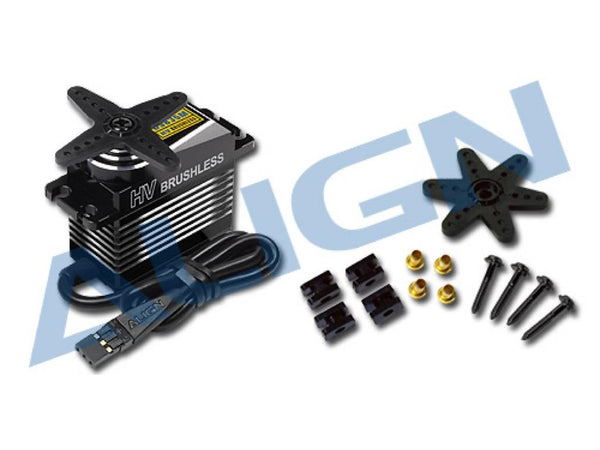

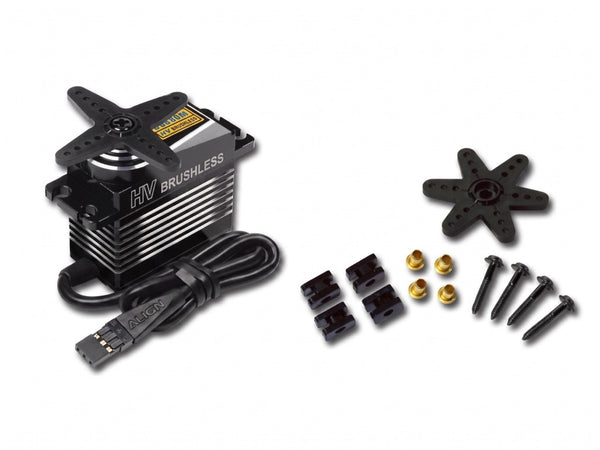

Accessories:

• DS835M High Voltage Brushless Servo x 1
• DS615/655 Servo Arm Set x 1
• DS615/655 Rubber Group x 1 (Square rubber x 4/washer x 4/screw x 1)
• Socket Botton Head Screw x 4(M2.5x10mm)
