EGODRIFT Tengu 3220HS 960Kv Motor (5x22) : 11754

EGODRIFT Tengu 3220HS 960Kv Motor (5x22) : 11754

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 3220HS comes with a kV rating of 960kV for 6S LiPo batteries and is the perfect choice for your 380 sized SAB Goblin (and Goblin Buddy), Oxy4Max or scale helicopter model. With the addition of the new 5x36mm shaft, this motor is also the perfect choice for your Henseleit TDSF model. (not shown in the pictures)

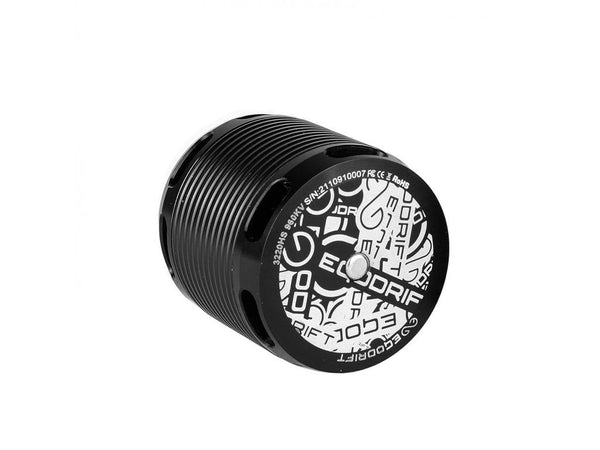

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 380 class heli build.

Each motor comes with mounting screws and 3 pairs of gold bullet connectors.

SPECIFICATIONS

• Manufacturer: EGODRIFT
• Stator size: 3220
• Motor configuration: 12N10P
• Motor weight: 180g
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 0.38mm
• Motor Kv: 960 Kv
• Motor shaft: Hardened Steel
• Mounting hole pattern: 4xM3(25)
• Laser Design: EGODRIFT Stickerbomb
• LiPo cells: 6S
• Stator diameter: 32 mm
• Stator height: 20 mm
• Stator lamination: 0.15 mm (+)
• Body Length: 41.1mm (1.62 inch)
• Diameter: 40.5mm (1.59 inch)
• Idle current: 3.1A
• Maximum Current: 60A (Peak: 70A / 2 seconds)
• Maximum Power: 1680W (Peak: 2000W / 2 seconds)
• Internal resistance: 22.1 mOhm
• Connection: Wire / Gold plated plugs
• Designer: Yutao Zou

What's in the box

• 1 x Tengu 3220HS / 960kV Motor (choose shaft)
• 3 x Gold Plated Connector, Male
• 3 x Gold Plated Connector, Female
• 4 x Mounting Screws
