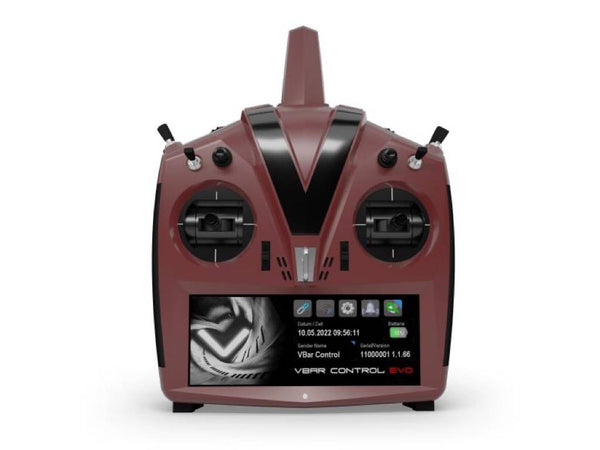

Mikado VBar Control EVO+ (Lava Red) : 05624
NEW: Fully digital gimbals
- Tough yet lightweight design
- High precision readout with 8 parameters per axis
- 3D sensor sampling (3 Hall sensors per axis)
- Fully integrated in VBar Control EVO software
- all-digital signal path, drift-free
- virtually latency-free
- supreme resolution
- perfectly linear
- temperature compensation per sensor
- earth magnetic field compensation
- super sensitive throughout the whole stick range
- factory calibrated
- adjustable stick response from smooth to extremely fast
- Made in Germany
VBar Control EVO Highlights
- New processor: 600 MHz (Touch: 150 MHz), current chip production
- Latest technology ARM Cortex M7 with large caches and low power consumption
- Graphics processor (GPU)
- Internal flash disk 4 GB (Touch: 128 MB)
- Faster WIFI 802/b/g/n (3 times faster than before), very fast connection
- USB data transfers 10 times faster
- Improved Touch Display
- USB-C fast charging with 15 W with any off-the-shelf USB-C charger
- Extra fast and extra precise reaction to stick inputs due to faster processing
Note: The use of the VBar Control radio requires a VBar EVO or NEO or an RX Satellite with a legacy VBar or Mini-VBar unit with firmware version 6.0 PRO or higher. This version is free for all legacy devices as an incentive (but not for VBar EVO or VBar NEO), for anyone who purchases a VBar Control radio. After registering your VBar Control radio on www.vstabi.info, customers will be able to add and download firmware version 6.0 PRO free of charge, even for any VBars or Mini VBars they already own. More information on this process is available on www.vstabi.info.
Software Highlights:
- Setup, programming and adjusting of VBar-controlled models accomplished directly via VBar Control radio.
- Readily understandable graphic user interface.
- Easy programming for new models.
- Easy ESC programming of many current ESCs directly from the radio.
- Up to eight parameters can be tuned simultaneously using the optional inputs, with adjustable limitation of the the respective range of values.
- Bank switching with three banks (fourth Bank Autorotation optional).
- Real time logging and real time graphic vibration analysis available on display.
- Graphical telemetry log analyser for stored flights (overview, energy consumption, event-log) directly readable on the display.
- Create your own screen design directly on the touchscreen display.
- Full manual available on the radio by means of context sensitive help.
- Easy bind process, allows bind and fly of any model equipped with VLink (e.g. a buddy‘s heli) with your own transmitter (Model Sharing).
- Automatic power-on, if an already bound model is switched on.
- Several telemetry functions are available, such as voltages, current, rpm, speed, temperature and power consumption of the batteries (may need additional hardware).
- Multiple timer functions available with warnings and reminders via sound, voice, or vibration output.
- Wireless buddy boxing with two VBar Control radios, fully configurable.
- Cloud functionality (e.g. for archiving, to manage model photos; usage optional).
- Access our App Store and do over-the-air online-updates via WiFi*.
Over-the-air online-update your VBar EVO and VBar NEO-flybarless systems via WiFi* (for purchases, a device with internet access and web browser is required).
Hardware Highlights:
- Extra bright capacitive 5.8 inch multi-touch colour display, with ambient-light sensor to automatically control the brightness.
- Very good readability even in bright sunlight.
- WiFi module connects to your WiFi network at home as well as to your personal hotspot on the go.
- Very fast start-up time, from off to fully operational in one second.
- High perfomance low power controller for best user experience and long runtimes.
- Reliable 80 Channel 2.4 GHz FHSS bidirectional flight control, programming/setup and telemetry remote control system.
- Unlimited model memory.
- Virtually unlimited number of control channels.
- High range, low latency, antenna diversity both on transmitter and receiver.
- Intelligent antenna monitoring and management.
- Fully equipped with four 3-position switches, two 3-position quick-break-switches as well as six rotary inputs (four trim wheels, two rotating knobs), all fully programmable.
- Precision gimbals with four ball bearings, fully adjustable.
- Collective stick can be equipped with optional throw limiter.
- Delicate rubber lining for comfortable, slip-free and safe holding.
- Well-balanced with two-point neck-strap attachment, no additional retainer bracket required.
- Large 2 Watt loudspeaker for alarms and voice output.
- Vibration alarm (adjustable).
- Memory accessible as a USB memory stick, no drivers needed.
- Built-in Lithium Polymer battery allows for long run times.
- Charge through USB connector.
* Online features require a WiFi connection and a device with internet access. Data transfers may cause additional costs, depending on your mobile data plan.
