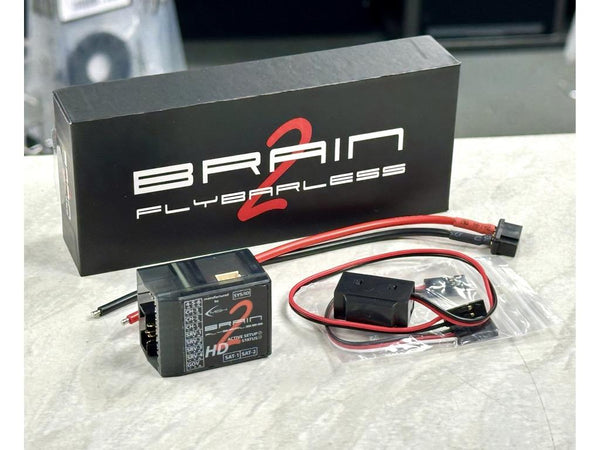

Second Hand MSH Brain 2 HD Flybarless System
Excellent Condition
BRAIN2 HD SPECIFICATIONS:
- Size (width x length x height) : 29,6 x 37,7 x 22,3 mm
- Weight : 16,7 g
- 15 Connections : 9 Gold-plated servo type three pole JR/Futaba male connectors, with 11 signals connections configurable for:
9 output (7 PWM + TX for SYS + TX for on onboard USB), and/or 11 input (6 single PWM from RX, 1 RPM pulses + SAT1 +SAT2 + RX on SYS + RX on onboard USB) and 8 servo power bus connections
1 Power MPX connector controlled by a switch
1 Gold-plated servo type three pole male JR/Futaba connector for power switch
1 On board micro USB connector capable to power internally the Unit
1 SYS four poles JST connector (GND, TX, RX, +V) capable to power internally the unit or an external accessory (Wireless Dongle)
2 SAT three pole JST connectors with 3,3V output (2 input and/or 2 output)
