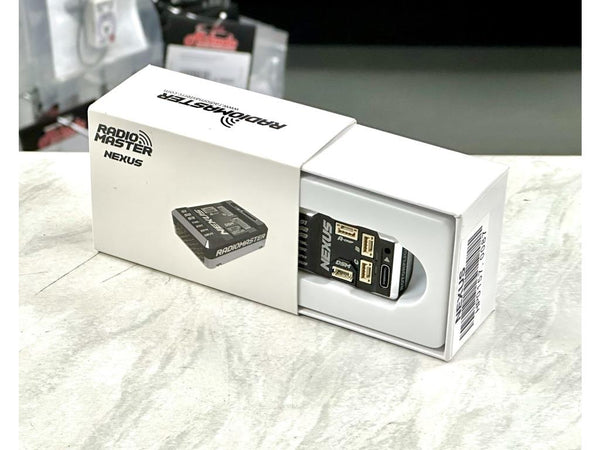

Second Hand RadioMaster NEXUS Control System
Great Condition
Features
- The NEXUS Control System is designed from the ground up specifically for RF 2.0
- Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer
-
Built-in Black Box: A large 128MB of onboard flash memory ensures you can log all your data for fine-tuning and adjustment
- Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
- Features multi-function ports (UART) for future expansion
- The NEXUS Control System is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
- The NEXUS measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size build.
- A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT
- The device has multiple independent power supplies that minimize noise when reaching 1.8V.
- Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and uses flexible silicone wires to prevent vibration transfer to the control unit
- RF Rescue function as a standard
Specification
- Item: NEXUS Control System
- Firmware: RF 2.0
- MCU: STM32F722RET6
- Flash Memory (Black Box. IC): 128MB (W25N01GVZEIG)
- Barometer: SPL06-001
- Uart: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: 4 - S1, S2, S3, TAIL
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
- Voltage Supply(DC): 5 - 12.6V
- A-B-C Serial Port Power Output: 5V - 2.0A
- DSM Serial Port Power Output: 3.3V - 0.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- Demensions: 41.3 X 25.4 X 13.1mm
- Weight: 16.8g
