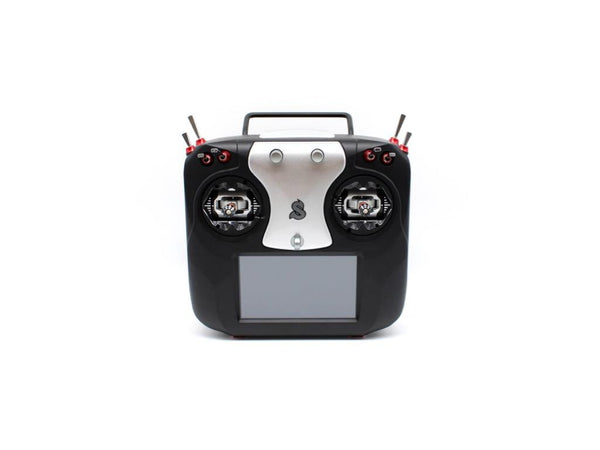

Spirit Wave Radio (Black) Mode 2 : SPT-WAVE-B
Spirit Wave is next generation Radio Control System utilising the cutting edge technology. We aim to provide the best experience for R/C model enthusiast through seamless integration of all Spirit products.
It is designed for all R/C models and it's capabilities can be extended without a limitation. Easily by Updating to a new version, for free.
Spirit Wave can be easily bound with Spirit W1 controllers or with Spirit RX receivers. Spirit W1 is our greatest unit for R/C helicopters and R/C airplanes with integrated Wave receiver.
Any third party controller can be connected through Spirit RX receiver by a standard PWM, S-BUS or SRXL protocols.
RF module
- Designed entirely by Spirit System for allowing the unprecedented integration.
- Spirit Wave 2.4Ghz full-range telemetry.
- Dual Path independent antennas for improved safety and Signal coverage.
- Full featured 30+ channels available.
- Blazing fast 300 Hz transmission.
- High interference immunity.
Features
- Reliable Spirit RF protocol
- 333Hz Frame Rate
- Cutting Edge 3ms Link Latency
- 30 Channels (more can be added if needed)
- Dual Path Transmission
- Easy Receiver Binding
- 4.3“ IPS Touchscreen Display
- 6900mAh Battery
- Quad Core 64bit ARM CPU
- Fully optimised Touch Interface
- Pre-assembled with Tempered Glass Protector
- High quality Hall AG01 gimbals
- Very durable Switches, Sliders and Potentiometers
- Interchangeable Switches
- Full of Aluminium parts, yet light
- 2.4/5GHz Dual Band WiFi
- Bluetooth/BT LE 4.0
- Virtually unlimited Model Memory and Flight Modes
- Voice Output with 3W Speaker
- High Quality Programmable Text to Speech in all languages
- Fast Telemetry with Full Range in both directions
- Based on in-house developed Spirit OS
- Multi Language localisation
- Log Viewer for all Telemetry records
- Battery Manager included out of the box
- Wireless Trainer • Wireless Model Sharing
- Unique Spirit Remote Interface
- Media Player
- Full Support for R/C simulators / USB-C or WiFi
- Spirit App Store with apps designed just for Wave
- QML Scripting support
- Spirit Online Support directly in your radio
- Motion Sensor for controlling any Function
- Light Sensor for adjusting screen parameters
- Quick and Easy Online Updating without a computer
- Extremely tight Spirit Integration
- Support for all common ESC telemetries
- Modern ESC configuration directly from Radio with selected brands
- Spirit parameters per each Flight Mode
Supported Models
- Helicopter
- Plane
- MultiCopter
- Car
- Boat
- Other
Specifications
- Weight: 865g
- Main Body dimension: 180 x 170 x 65 mm (excluding Radio Holder, Switches and Neck Strap Lock)
- Operating Temperature: 0 - 40°C / 32°F -104°F
- Battery: 6900mAh 3.8V Premium Grade LiPo
- Current Consumption: 850 mA max., 45 nA Standby
Package Content
- Spirit Wave transmitter
- Carry Bag
- Neck Strap
- 2m USB-C Cable
- Allen Key
- Torx T6 Key
WARNING: USB Charger is not included, you can buy it optionally from us. Any USB (USB-A) charger will work, including USB port from a computer.
