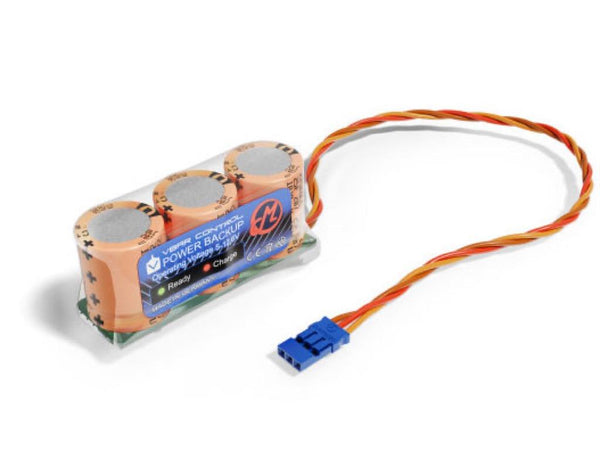

Mikado Power Backup Mini, VBar Control : 05588
Benefits at a glance
- automatic activation and deactivation, depending on the operational status of the model (motor switch position, stick inputs)
- all voltages can be monitored separately via telemetry
- charging currents are adjustable, both for initial charging and for topping-up during operation
- recharges automatically and immediately whenever needed
- companion App warns the pilot whenever the backup is used
- this unit ensures the everyday operation of your valuable models
Hardware features
- wide input voltage range from 3 V up to 12.6 V (3s LiPo) with a 16 V peak margin
- Capacity 3 x 25 F, 20+ A peak current
- short circuit protection
- fast charge (adjustable) up to 2.4 A
- charging current is ramped up slowly, to protect main power supply
- decoupled channels for power delivery and for charging
- VLink Telemetry monitoring and control
- no r/c channel (servo connector) must be sacrificed, pass-through via main connector
- active balancer between capacitors for low idle discharge
- up to 3 units can be connected parallel, tripling the capacity and power; cascaded units are
fully supported by companion App
- telemetry input for other sensors or ESCs (daisy-chaining)
Specifications
- Power Supply : 3-12.6 V (3s LiPo), max. 16 V
- Dimensions : approx. 28 x 55 x 19 mm (H x W x D)
- Weight : approx. 33 g including wires
- Power Rating : Capacity 3 x 25 F, 20+ A peak
Contents
- Device : VBar Control Power Backup w/ power wire, manual
- Connecting Wire : Telemetry wire included
Miscellaneous
- Miscellaneous : Update VBar NEO, install companion App on transmitter
