XGuard IntelliSwitch - Switch w/Dual Solid State Relay + Aircraft Locator Buzzer : AAVXG0270

XGuard IntelliSwitch - Switch w/Dual Solid State Relay + Aircraft Locator Buzzer : AAVXG0270

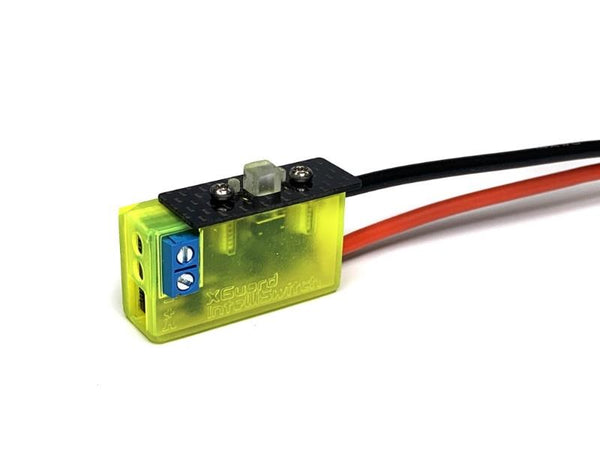

XGuard IntelliSwitch – Switch with dual solid state relay and aircraft locator buzzer

Massive dual Solid State Relays for ultra-reliability under peak loads and redundancy safety.

Current Capacity limited by the cable wires used.

Pre-Installed AWG 14 Cables compatible with your EC3 or XT60 Connectors.

Illuminated light pipes one GREEN for when everything is OK and one RED when a critical low voltage is detected or blinking RED when below minimum recommended voltage.

Screw-Type terminal for larger gauge Wires for High-Current applications.

Double the servo output connectors adds redundancy and doubles current capacity

100 dB Buzzer as low-level battery indicator & Aircraft Locator.

Two types of Battery Chemistry

• 7.4V Lipo (2S)
• 7.2V Ni-Mh (6 cell)

Note: (LiFe packs can also be used but it will only warn if voltage drops below 6.2V)

WEIGHT:

Switch itself without wires: 12.2 grams (0.43 oz)

Pair of 8 inch 14 AWG wires: 10.9 grams (0.38 oz)

Unit with wires: 23.1 grams (0.81 oz)

(Note: Wires can be shortened to match your specific needs)
