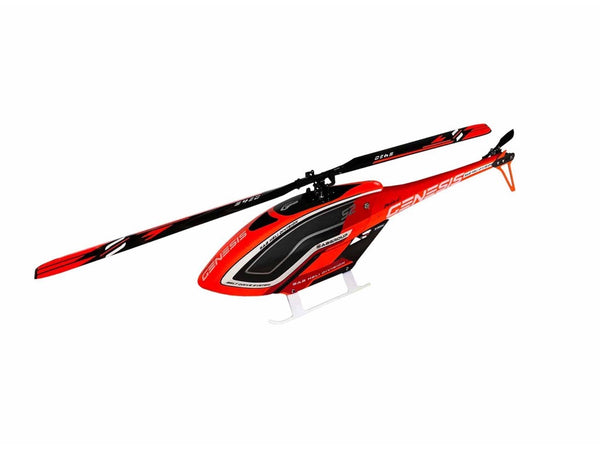

SAB Genesis Sport (Mini Version) : SG425

SAB Genesis Sport (Mini Version) : SG425

The all new Genesis Sport mini version is based on the already proven design of the Raw 420 competition. Sharing the same mechanics, transmission, head and tail, the Genesis Sport "mini" offers better visibility making it ideal for those who prefer an easier to see, sport flying or mild 3D flying machine.

Specifications:

• Main rotor diameter 935mm (with 420mm blades)
• Main blade length 380 to 420mm
• Tail rotor diameter 190mm (with 70mm tail blades)
• Tail blade length 60 to 70mm
• Micro size cyclic servos (23mm)
• Mini size tail servo (35mm)
• Maximum battery size: 140x40x50mm (max)
• Recommended battery: 6s 2200/2700 mAh
• Recommended motor: 3020 – 3215 – 3220
• Recommended KV motor: 900-1000 KV
• Recommended battery weight: 350-420 grams
• Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
• Tail rotor ratio 4:1
• 8mm main shaft
• 5mm tail shaft

Main Features:

• Quick release battery tray with integrated connectors
• Zytel HTN resin blade grip arms (sacrificial)
• It is not necessary to remove the canopy to replace the batteries.
• Main ratio 1:5/6
• Tail ratio 4:1
