Second Hand Castle Arming Lockout Harness and Key w/Lanyard : P-CC011-0067-01
Excellent, Like New Condition

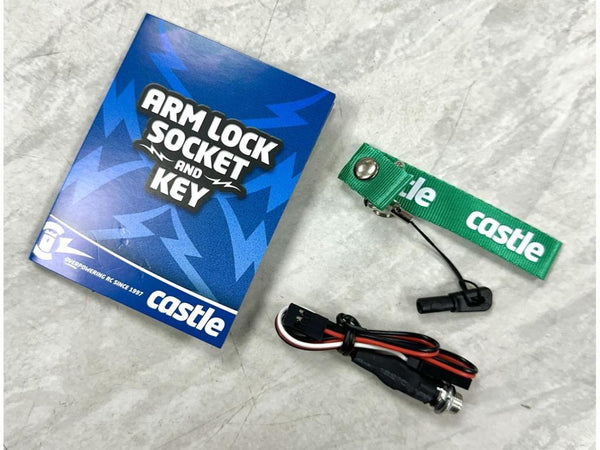

The Castle Creations Arming Lockout Harness and Key (P-CC011-0067-01) adds an extra layer of safety for RC helicopters and aeroplanes. Connected between the Phoenix Edge ESC’s AUX line and your receiver, the removable key — supplied with a handy lanyard — prevents the controller from arming while seated and can force an ARM LOCKOUT to stop the motor if inserted during operation.
Operation
- Key in socket or disconnected arm-lock wire = ARM LOCKED. A correctly wired and programmed Edge ESC will be incapable of arming when the key is fully inserted. If the key is inserted or the arm-lock socket loses power, the ESC enters a locked state — even if it is running.
- Key removed and power to socket = ARM UNLOCKED. The ESC must receive a valid low-throttle signal to arm and run.
Wiring Diagram
- Connect the white wire to the AUX line (white wire) on a Phoenix Edge ESC.
- Connect the red "+" wire to any servo lead via a Y-harness, or to any empty channel on the receiver.
How It Works
- When the key is fully seated, the controller cannot arm.
- Removing the key allows arming when a low-throttle command is received on the throttle line.
- Inserting the key while the motor is running forces ARM LOCKOUT, stopping the motor and preventing arming.
Suggested Compatibility
Castle Creations Phoenix Edge ESCs for RC helicopters and aeroplanes.
