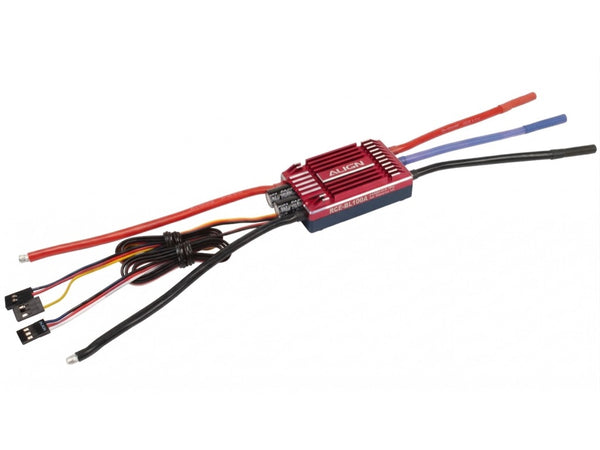

Align RCE-BL100A Brushless ESC (UNPACKAGED) : HES10001T-UP

Align RCE-BL100A Brushless ESC (UNPACKAGED) : HES10001T-UP

*** Note this is a brand new unit removed from a full 550X combo, so does not include retail packaging ***

Supplied as standard in the T-Rex 550X

32-bit fast-speed processor.

High quality MOSFET.

Adjustable BEC function, supply power to receiver and servos.

Superior governor feature.

Support 730MX Brushless Motor, Extreme 3D Flight.

Support USB interface to PC for firmware updating.

Specification

• Supporting input voltage: 3~6S Lipo / 11.1V~22.2V
• Continuous current: 100A
• Surge current: 170A
• BEC output voltage: 5~8V
• BEC output current: Continuous 10A / Surge 25A
• Size: 78.5x38.1x21mm
• Weight: 138g

Includes

• 100A Brushless ESC x 1
• Brushless ESC Fan x 1
