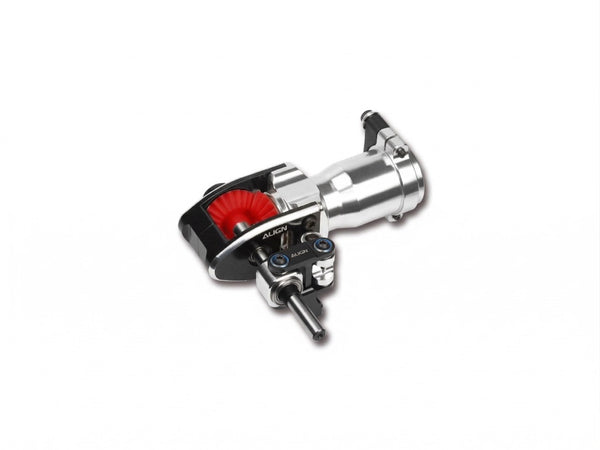

Align T-Rex 600 Tail Torque Tube Unit : H60252AT
Brand new tail gear box with higher material quality and easy maintenance.
Utilises dual point attachment design for zero play and higher precision control feel.
Constructed with CNC aluminium alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
6061-T6 Aluminum alloy material and CNC processed.
Suitable for T-REX 550/600.
- Metal plate(L) × 1
- Metal plate(R) × 1
- Tail unit set × 1
- Tail rotor shaft assembly set × 1
- Bearing MR105ZZ × 2(Φ5xΦ10x4mm)
- Bearing 6701ZZ × 2(Φ12xΦ18x4mm)
- Socket screw × 4(M3x6mm)
- Socket screw × 1(M3x20mm)
- Vertical stabiliser mount × 1
- Socket collar screw × 1(M3x22mm)
- Socket collar screw × 1(M3x16mm)
- M3 Specialty washer × 2(Φ3xΦ8x2mm)
- Collar × 1(Φ12.4xΦ18x10mm)
- I-shaped Arm × 1
- Mount Link × 1
- Bearing holder × 1(13.5x12.5x9.5mm )
- Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
- Tail control arm × 1
- Bearing holder × 1(Φ7x Φ8.3x3.5mm)
- Bearing F682XZZ × 6(Φ2.5xΦ7.1xΦ2.6mm)
- Bearing MR117ZZ × 2(Φ7xΦ11xΦ3mm)
- Socket button head screw × 1(M3x5mm)
- Socket button head screw × 6(M2.5x5mm)
- Slider Shaft × 1(Φ8x7x17.6)
