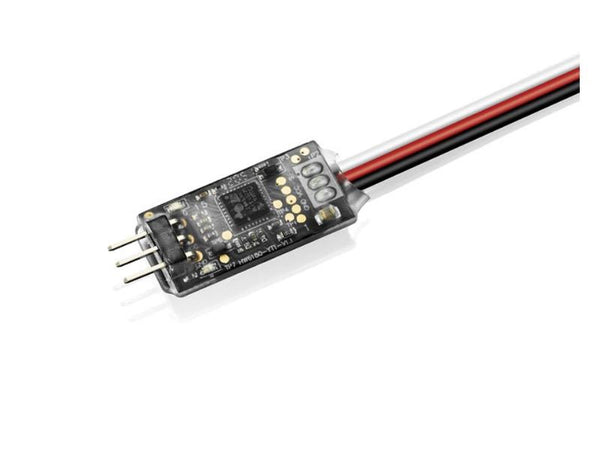

Hobbywing SBUS2 Futaba Telemetry Adapter : HW30850500

Hobbywing SBUS2 Futaba Telemetry Adapter : HW30850500

New Hobbywing S.BUS2 Telemetry Adapter for Futaba adapter with Hobbywing Platinum V4 / V4.1 / V5 series electronic governor or Hobbywing vehicle model ESC that supports real-time data (refer to relevant product instructions or official website information) and FUTABA equipment, It is easy to send the Telemetry data of the ESC to FUTABA equipment such as receivers, gyroscopes, etc., so that users can view the ESC operating status data (current, voltage, speed, etc.) in real time on FUTABA devices (e.g. remote control). The two LEDs clearly show the operating status of the adapter. It is compact and lightweight and does not take up too much space made for easy installation.

Specifications

• Product Name:S.BUS2 Telemetry Adapter for Futaba
• Product Number:30850500
• Working Voltage:5-9V
• Size:25*13*6mm
• Weight:3.5g

Applications:

Support SBUS2 Telemetry Adapter for Futaba Air ESC list:

• Platinum 25A V4(No Current data)
• Platinum 60A V4(No Current data)
• Platinum 80A V4
• Platinum 120A V4
• Platinum HV 130A V4
• Platinum HV 130A V4 OPTO
• Platinum HV 200A V4.1 SBEC
• Platinum HV 200A V4.1 OPTO
• Platinum 150A V5
• Support SBUS2 Telemetry Adapter for Futaba Car ESC list:
• XERUN XR10 PRO G2S (No Current data)
• XERUN XR8 PULS G2S
• XERUN XR8 PRO G2
• XERUN XD10 PRO (No Current data)
• EZRUN MAX8 G2
• EZRUN MAX4 HV
