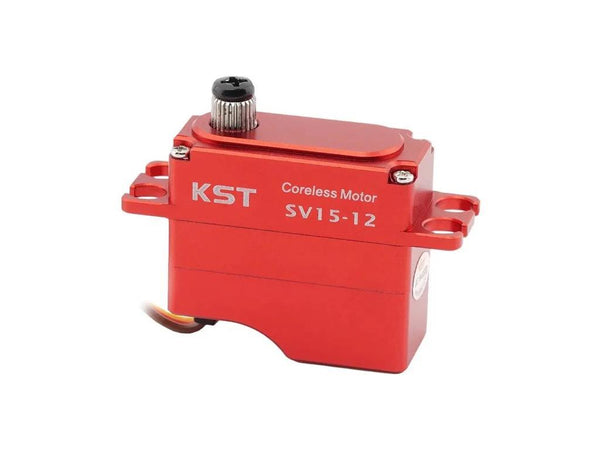

KST SV15-12 SHV Mini Coreless Digital Servo Dual BB 20Kgf.cm 0.10sec/60 : KST-2511

KST SV15-12 SHV Mini Coreless Digital Servo Dual BB 20Kgf.cm 0.10sec/60 : KST-2511

The SV15-12 digital servo is a high-performance, programmable coreless servo designed for RC Helicopters, Robotics and Industrial UAVs. Featuring a hardened steel gear, CNC aluminium alloy case, and dual ball bearings, it ensures exceptional durability, precision, and smooth operation. With a wide voltage range (8.4V-13.0V), it delivers up to 20.0 kgf.cm of torque at 13V and boasts a high-speed response of 0.10sec/60°.

Ideal for high-torque and fast-response applications, the SV15-12 servo is the perfect choice for RC enthusiasts and professionals seeking superior servo performance.

Features

• SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
• Supports 8.4-13.0V High Voltage
• Programmable
• Dual Ball Bearings
• High Torque & Exceptional Speed
• Compact and Lightweight Design
• High Performance Coreless DC Motor
• Hardened Steel Gear
• Ideal for RC Helicopters, Industrial UAVs & Robotics

Specification

• Item: SV15-12 Servo
• Rated Voltage: DC12.0V
• Voltage Range: DC8.4V-13.0V
• Torque: 15.0Kgf.cm@8.4V / 18.0Kgf.cm@12.0V / 20.0Kgf.cm@13.0V
• Speed: 0.15sec/60°@8.4V / 0.11sec/60°@12.0V / 0.10sec/60°@13.0V
• Start Current: 1.50A@8.4V / 2.08A@12.0V / 2.25A@13.0V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60° = 120° Total
• Temperature Range: -10?.......+65?
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 33*15*30mm±0.2mm
• Weight: 35g±10%

Package Includes

• 1 * SV15-12 Servo
• 3 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw
• 4 * Rubber Grommet
• 4 * Eyelet
