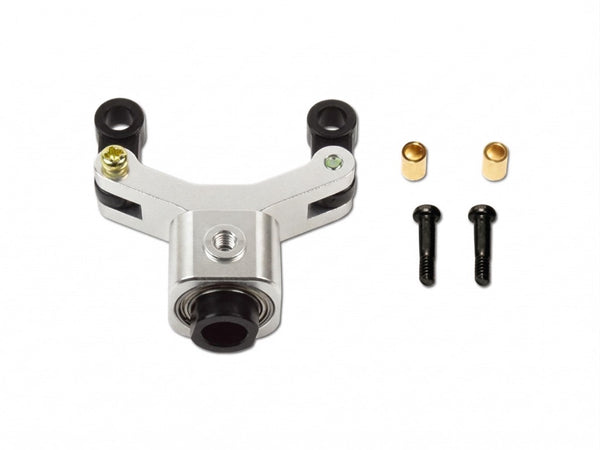

Metal Tail Pitch Assembly (New Type) (H60077BT)

T-REX metal tail pitch assembly features high precise bearing structure and high rigid CNC processes aluminum alloy material, and therefore this refitting component is absolutely helpful for the accuracy of flying movement control and the stable of the flight.

Use for T-REX 550X/550L/550E/600L/600E/600N.

Specification:

Slider Shaft x 1(8x7x17.6mm)

Bearing holder x 1(13.5x12.5x9.5mm)

Bearing holder x 1(7x8.3x3.5mm)

Control link x 2(14.75x6x3.9mm)

700 Collar x 2(2.5x3.5x4mm)

600 PRO Metal T type arm x 1(8x30x8mm)

Bearing MR117ZZ x 2(7x11x3mm)

Collar screw x 2(M2x8mm)

Socket Button Head Collar Screw x 2(M2.5x8mm)
