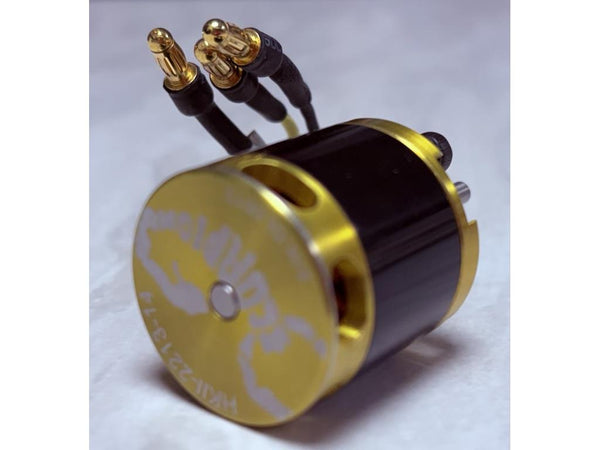

Second Hand Scorpion HKII-2213-14 3585kv Motor
Good Condition
Specifications
- Stator Diameter 22.0 mm (0.87 in)
- Stator Thickness 13.0 mm (0.51 in)
- No. of Stator Arms 9
- Magnet Poles 6
- Motor Wind 14 Turn Delta
- Motor Wire 11-Strand 0.21mm
- Motor Kv 3585 RPM / Volt
- No-Load Current (Io) 1.74 Amps @ 10 volts
- Motor Resistance (Rm) 0.038 Ohms
- Max Continuous Current 32 Amps
- Max Continuous Power 355 Watts
- Weight 54 Grams (1.90oz)
- Outside Diameter 27.9 mm (1.098 in)
- Shaft Diameter 3.17 mm (0.125 in)
- Body Length 30.3 mm (1.193 in)
- Overall Shaft Length 50.7 mm (1.996 in)
- Max Lipo Cell 3s
- Motor Timing 5deg
- Drive Frequency 8kHz
