Scorpion Tribunus III 14-320A ESC SBEC : III_14_320

Scorpion Tribunus III 14-320A ESC SBEC : III_14_320

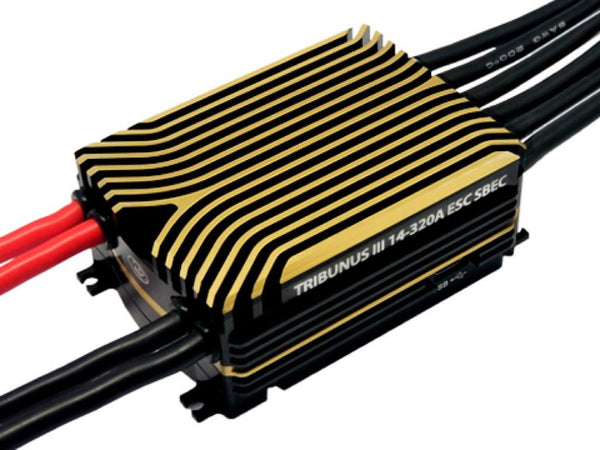

The Tribunus III 14-320A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilising all Western Components this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Specifications

• Max Continuous Current 320 Amps
• Peak Current 420 Amps
• Operating Voltage Range 12-61* Volts
• BEC Output voltage: OFF / 5.1V to 12.1V adjustable
• Max Continuous BEC Output 15 Amps @ 8.1 V
• On Resistance 0.32 mOhms*2
• ESC Body Size 75.0 x 98.5 x 40.0mm (2.95 x 3.88 x 1.57 in)
• Mounting Tab Dimensions 53.0 x 103.0mm ( 2.09 x 4.05 in) / M3 Bolt
• Weight (with wires) 600g (21.16oz)
• Weight (without wires) 400g (14.10oz)
• Drive frequency 8kHz - 32kHz

Included in the Box

• 1 x Tribunus III ESC
• 2 x BEC Cables
• 1 x Mounting Hardware Pack
