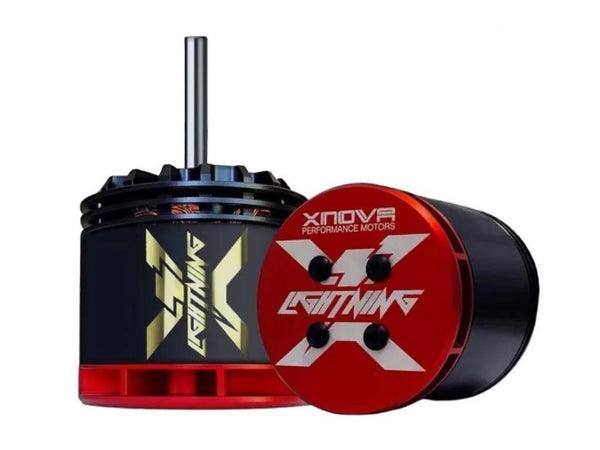

Xnova Lightning Brushless Heli Motor 3220/950KV, 5mm A shaft (22mm) : XNM-LN-3220-950-A-0177
Ideal for the SAB RAW 420 Competition, iLGoblin Pro 420
The 3220 lightning is a brand new powerhouse. Any helicopter asking for insane power swinging 380-420mm blades will be super happy with this masterpiece. The Xnova lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extreme hard 3D, running in 380-420mm blade size helicopter where highest power to weight ratio is important.At the same time this motor is also extreme efficient!
| Slots & Poles | 12n10p |
| Winding T | YY |
| rpm/V | 950 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 1.8 / 3.0 |
| Rm (mohm) | 18 / 18 |
| Weight (without connector) (g) | 200 |
| Body Length (no shaft) mm | 45 |
| Diameter (mm) | 40.5 |
| Shaft Length (mm) (Details pictures) | A or B |
| Shaft Dia. (mm) | 5 |
| Mounting Holes CTC Distance (mm) | 25 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 31.62 / 60.83 |
| Max Eff. | 88.62 / 90.14 |
| Kt (Nm/A | 0.0101 |
| Km (Nm/sqrt(w)) | 0.0749 |
| Max Continuous Power(Watts) | 1450 |
| Peak Continuous Power(Watts) (2 sec) | 1900 |
| Max Continuous Current(Amps) | 66 |
