Scorpion S-4020-14 Motor (Second Hand) : MHSH11

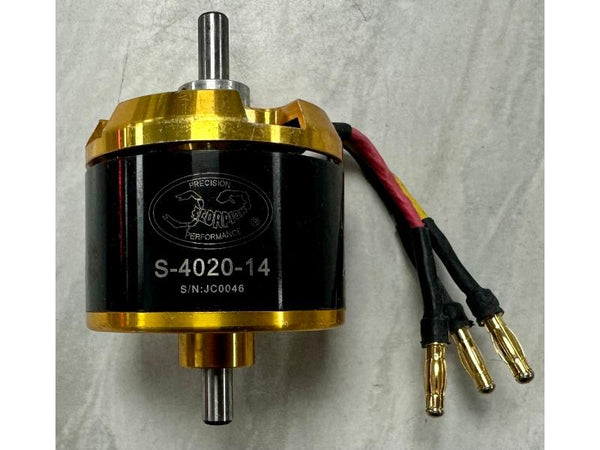

Second Hand Scorpion S-4020-14 Motor

Some Cosmetic Marks

Specifcations:

• Stator Diameter: 40.0mm (1.575 in)
• Stator Thickness: 20.0mm (0.787 in)
• No. of Stator Arms: 12
• Magnet Poles: 14
• Motor Wind: 14 Turn Delta
• Motor Wire: 20-Strand 0.25mm
• Motor Kv: 484 RPM/Volt
• No-Load Current (Io): 1.19A
• Motor Resistance (Rm): 0.024Ohms
• Max Continuous Current: 80A
• Max Continuous Power: 1750W
• Weight: 297g (10.04oz)
• Outside Diameter: 48.9mm (1.925in)
• Shaft Diameter: 6mm (0.236in)
• Body Length: 46.15mm (1.816in)
• Overall Shaft Length: 78.04mm (3.086in)
• Max LiPo Cell: 6S
