Aluminium Main Blade Grip W/ Thrust Bearing (RED) - BLADE FUSION 180 Smart : MH-F18S102

Aluminium Main Blade Grip W/ Thrust Bearing (RED) - BLADE FUSION 180 Smart : MH-F18S102

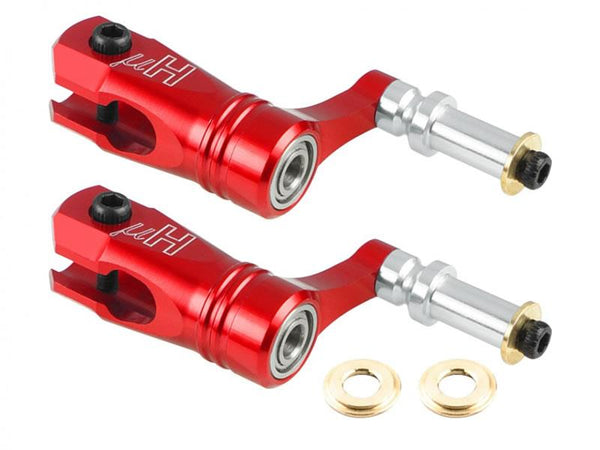

The design of the Aluminium Main Blade Grip with Thrust Bearing was to optimize for rigidity, stability, durability and overall performance of the BLADE FUSION 180 Smart helicopter. It is directly replaced the stock plastic.

The new upgrade product is designed with Thrust Bearing in the inner side of the Aluminium Main Blade Grip, to increase Spindle Shaft and Radial Bearings support and significantly reduce play. Radial Bearing system is technically re-engineered more reasonably with the Thrust Bearing between two Radial Bearings, instead of placing the Thrust Bearing outside like the stock plastic Main Grip. No more pressure from the Spindle Shaft Screw lock, or come apart, or lost easily during installation when the Thrust Bearing is placed in the inner side.

Included:

• 2 x Aluminium Main Blade Grip with Thrust Bearing
• Hardwares

Usage:

• Use for BLADE FUSION 180 Smart

Requires:

• Read and follow the Assembly Instruction carefully
• Loctite (#242 is recommended) is required to apply to all mechanical screws for safety precaution
• Basic hand tools

Instruction:

• Manual and Instruction included
