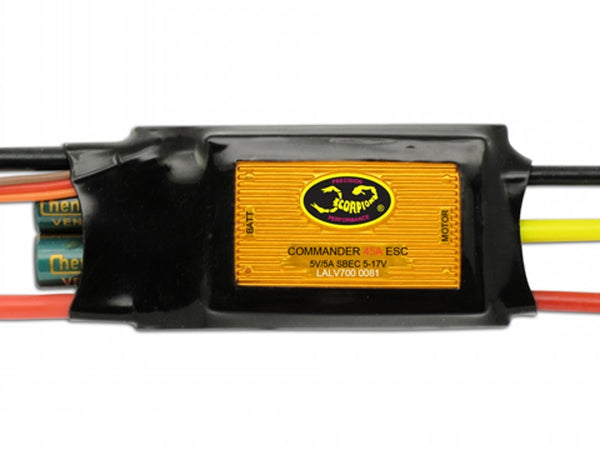

Scorpion Commander 15V 45A ESC SBEC (V3) : SC-4S_45_SBEC_V3

*** SPECIAL ORDER, PLEASE ALLOW 5-10 DAYS FOR SHIPPING ***

This ESC is NOT INCLUDED IR Transmitter (Programming Card) & IR RECEIVER

The Commander 4S SBEC series ESC(V3) operates from 6 to 17V. It features switching BEC will convert the voltage from your battery packs to 5V to power your receiver and servos. The Commander SBEC will deliver 3 Amps of continuous current with 5 Amps bursts. And can handle up to 4 digital servos or 5 standard servos on fix wing models. With a Switching type BEC, the BEC is not needed to de-rate as the input voltage increases. The full 3 Amps of BEC current is available for input between 2-cell to 4-cell Lipo operation.

The full-featured IR Programming Card allows the user to set the following parameters:

Low Voltage Cut-off (5V to 13.5V at 0.5V increments) no need to select battery type just set the voltage the ESC should work on, by doing this, the ESC will be compatible with any future type of battery designs.

LVC= LOW VOLTAGE CUT: 050 (5V) TO 138(13.8V)

BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE

AIR= ACTIVATE AIRPLANE MODE*

PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15* Seconds, 2: 0.3 Seconds, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

FREQ= DRIVE FREQUENCY: 1: 8 kHz *

SB= MOTOR STARTING BOOSTER 1: SOFT, 2: MEDIUM, 3: STRONG

SOFT START DURATION: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3: STRONG 20 Seconds

GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5*

SB (I Gain) = CURRENT GAIN: 1 to 8 (INSENSITIVE to SENSITIVE), DEFAULT: 5*

SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds

*Factory Default

Specifications

Weight (Without Connectors) : 44 g (1.55 oz)

Max Continuous Current : 45 Amps

Operating Voltage Range : 5 to 17 Volts

Max BEC Output : 5 Amps @ 5 V

On Resistance : 2.33 mOhms

Size : 72 x 30 x 8 mm (2.83 x 1.18 x 0.315 in)
