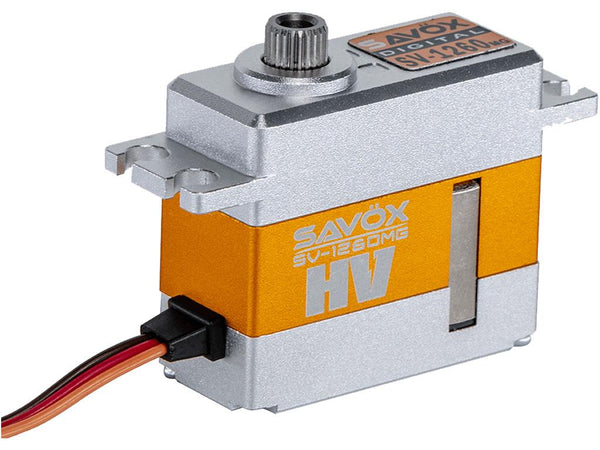

Savox HV Digital Mini Tail Servo 15KG/0.048S @ 8.4V (SAV-SV1260MG)
Ideal for use on the OMP M5.
The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminium case and metal gearset, making it one of the strongest and fastest mini servos available.
FEATURES
- Metal gear train provide durability against heavy use.
- Capable of HV operation.
- All aluminum case provides strength and cooler operating temperatures.
SPECIFICATIONS
- Line: MONSTER LINE
- Application: CAR / HELI;AIRPLANE
- Servo Size: Mini
- Operating Voltage: 6.0V-8.4V
- Speed @6.0V: 0.065 s/60°
- Torque @6.0V: 8 kg/cm
- Speed @7.4V: 0.055 s/60°
- Torque @7.4V: 12 kg/cm
- Speed @8.4V: 0.048 s/60°
- Torque @8.4V: 15 kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Aluminium
- Protection: Dust Resistant
- Dimensions (L x W x H): 35.0 x 15.0 x 30.7 mm
- Weight: 40 g
TECHNICAL DETAILS
- Gear Type: Heavy-Duty Metal
- Compability: Normal
- PCB Board: 12bit 4096, Softstart, Lock protection
- Horn Gear Spline: 25T(Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000 μsec)
- Max Travel: ~165° (when 800→2200 μsec)
- Operating Travel: 100° (when 1000→2000 μsec)
- Neutral Position: 1500 μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 26 AWG
- Cable Length: 250 ±5 mm
- Connector: JR Connector
- Stall Current @6.0V: 4000 mA
- Operating Current @6.0V: 150 mA
- Stall Current @7.4V: 4900 mA
- Operating Current @7.4V: 180 mA
- Stall Current @8.4V: 5600 mA
- Operating Current @8.4V: 200 mA
- Idle Current: 5 mA
- Dead Band Width: 3-5 μsec
- Frequency Range: 50-360 Hz
- Control System: Pulse width modification
- Operating Temperature: -10°C to 50°C
