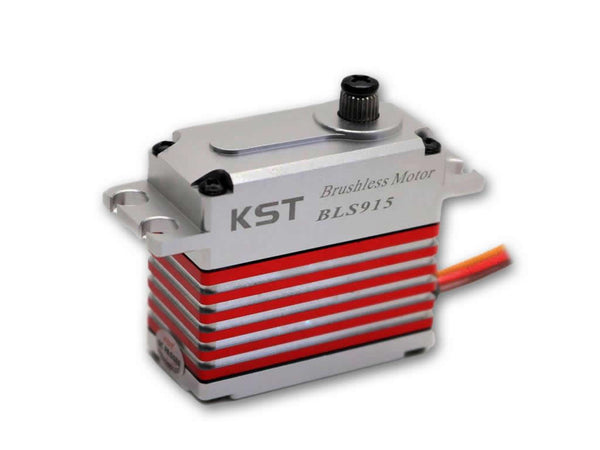

KST BLS915 V8.0 HV Brushless Servo 25kg/cm@8.4V : KST-0919
The BLS915 is a powerful 20m servo that's often used on the swashplate of 550-800 sized helicopters. It can, of course, also be used in fixed-wing models.
Technical details:
- Operating voltage [V]: 6.0 - 8.4
- Torque [kgf.cm][kgf.cm][kgf.cm] @ 8.4V: 25.0
- Positioning time [s/60°] @ 6.0V: 0.09
- Positioning time [s/60°] @ 7.4V: 0.08
- Positioning time [s/60°] @ 8.4V: 0.07
- Width [mm][mm][mm]: 38.0
- Weight [g]: 78.0
- Motor type: Brushless
- Frequency range: 1520us/333Hz, 1000us-2000us
- Gear type: Steel
- Bearing type: 2BB
- Toothing: 25T-6
- Servo type: Standard
- Electronics: Digital
- Position sensor: Potentiometer
- Waterproof: No
- Softstart: Programmable
- Programmable: Yes
- Manufacturer: KST
- Programmable with KST Tool #3 and KST Tool #5.
