*** PLEASE ALLOW 1-2 WEEKS FOR SHIPPING ***

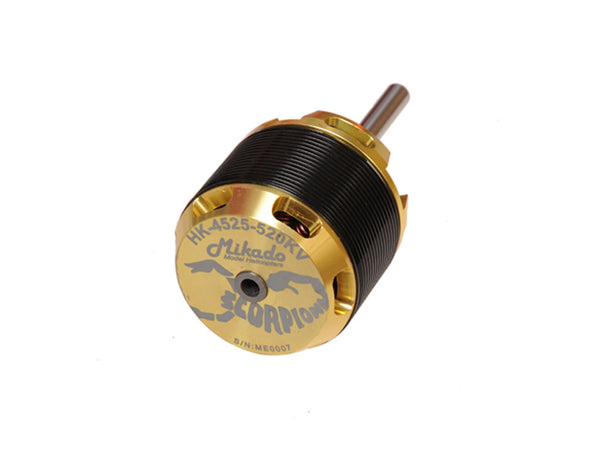

This is the excellent Scorpion 4525-520KV Ultimate Edition motor, but now fitted as standard with the motor shaft suitable for use in the Logo 700.
Technical data:
- Stator Diameter : 45 mm
- Stator Thickness : 25 mm
- No. of Stator Arms : 12
- Magnet Poles : 10
- Motor Wind : 5+6T YY
- Motor Kv : 520 KV RPM / Volt
- No-Load Current (IO/8.4v) : 1.75 Amps
- Max Continuous Current : 100 Amps
- Max Continuous Power : 4450 Watts
- Weight : 487 Grams
- Outside Diameter : 56,7mm
- Shaft Diameter : 5.98 mm x 55mm
- Body Length : 53,4 mm
- Overall Shaft Length : 114mm
- Max Lipo Cell : 12s
