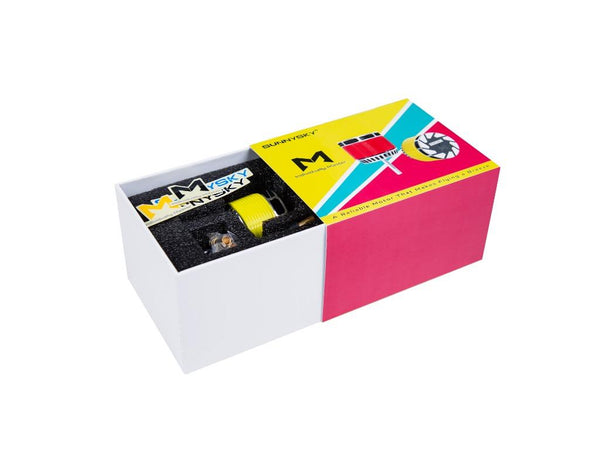

Sunnysky M4530R 518KV (Short Shaft) : OSHM-SS-4530-518R-S

Sunnysky M4530R 518KV (Short Shaft) : OSHM-SS-4530-518R-S

Racing Edition Performance motor for RC Helicopter

As supplied with the OMP M7 PNP Combo kit using part number OSHM7170.

Specification

• Stator Diameter : 45.5mm
• Stator Thickness : 30mm
• No. of Stator Slots : 12N
• No. of Poles : 10P
• No-Load Current (A/10V) : 2.5A
• Motor Wind : 4+4 Turn Delta
• Motor Resistance : 8.5mΩ
• Max Continuous Current : 125A
• Max Continuous Power : 6000W
• Motor Weight : 543g
• Outside Diameter : 56.3mm
• Shaft Diameter : 6mm
• Body Length : 57mm
• Overall Shaft Length : 38mm
• Mounting Hole and Screws : 30mm, 4 x M4
• Max Lipo Cell : 12S
• Recommended ESC : 200A
• Recommended Helicopter Size : 700-800mm
