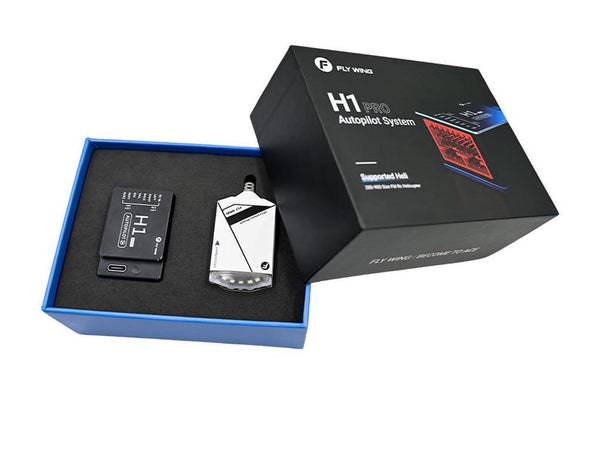

Flywing H1Pro Helicopter Flight Control FBL Gyro : FW-H1PRO
The new generation smart helicopter autopilot system.
Next-Generation High-Performance Sensor
Featured ICM42688P gyroscope,IST8310 compass' M55611 gas sensor pressure gauge, significant precision improvement and anti-interference performance. Faster compass calibration with improved accuracy; Built-in shockabsorption design, filter out any violent vibrations for safeguarding your sensor data.
Industrial-Grade CAN GPS
The H1 Pro is equipped with a white main GPS module that utilizes the high performance flagship M9N Ublox Chip, industrial-grade CAN protocol plug, stable and anti-interference. Subsidiary GPS option is available according to your need, which also equips with the low-power M1O Ublox chip. Featuring a dual core system to enable faster and more stable positioning with long endurance.
Specialised Sockets
Specialised sockets are featured with fool-proof design and wider spacing, which facilitates and strengthen the connections with the servos. Supports up to 12V servos (requires BEC support for 12V output).
GPS Mode + ATT Mode
Besides the traditional GPS positioning, the new Angle Mode (self-leveling) is now available. With fixed air pressure to stabilize altitude and more restrictions removed, you can enjoy the flight with a higher degree of freedom under minimal intervention from the flight controller.
Support 3D Acro mode
In addition to GPS and ATT modes, traditional gyroscope 3D Acro mode is also available.lf you can use gyroscope, then you can
continue to experience the freedom and sportiness in acro mode like a gyro.
Coordinated Turn
By activating this mode, in a forward or backward flight, pushing the Rudder stick (the Yaw) to left or right, the helicopter
will bank to the correct angle and achieve coordinated turn. This turn is replica of real helicopter manoeuvres, characterizing with dramatically smaller turning radius than conventional "drone turn". Benefited by the roll control of the fight controller, the coordinated turn is adjusted according to flight speed and yaw displacement.
Soft Take-off/Land
After enabling this function. Push the throttle and the helicopter will enter a slow automatic takeoff procedure and ascend to about 1 metre high. With the aide of proportional control, it can simulate a real helicopter take-off. During landing, when the helicopter is about one metre off the ground, it automatically switches to a proportional descent by flight controller.
Three Flight Sensitivities Mode, OnePlus Switch
The flight controller has three built-in flight feel settings: soft, standard, and sport. Different gains and different flight angles, both novices and experts can find their own comfortable way of doing things.
Compass Calibrating On Transmitter
Toggling the mode switch 3-4 times, you can enter calibration mode. The LED gradient light will display the calibration status. Avoiding the hassle of using computer calibration.
Voltage Detection port Upgraded To 12S
The voltage detection port of H1 Pro has been upgraded to support a maximum voltage input of 51V at 12S. This avoids the failure on H1 controller when returning home under low voltages for helicopters class 700 or above. Maximum 12S (standard voltage, not HV)
One click/low battery return
The functions of one key return and low battery return. After taking off from an open-air venue, simply press the return switch lightly, and the helicopter will automatically return to the takeoff point and land. When the battery reaches the set voltage value, the helicopter will also automatically return. (The set residual voltage value needs to be sufficient for the helicopter to return)
Specifications:
Size:
