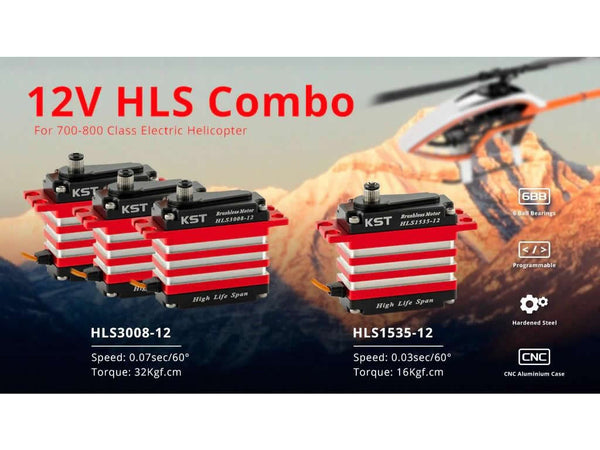

KST HLS Servo Combo 12V for Helicopter : KST-2300
Experience the future of 3D flying with the HLS 12 V Combo – developed for maximum performance and precision in the F3N and F3C classes! This servo combination brings the power of 12 volts directly to your helicopter, providing the ultimate high-performance solution for the most demanding manoeuvres. Whether in wild 3D aerobatics or precise competition use, the HLS 12 V Combo ensures lightning-fast reactions and unwavering control. Trust the power and precision that makes the difference and take your flights to a new level – with the HLS 12 V Combo!
Please note: All servos in this combo operate with a 760us neutral pulse, including the swashplate servos. A suitable flybarless system is required! Please check before purchasing whether your flybarless system supports 760us on the swashplate.
In the Box
- 3x HLS3008-12 760us swashplate servo
- 1x HLS1535-12 760us tail servo
Features:
- 6 ball bearings
- Long service life
- Extremely high torque and excellent speed
- Hardened steel gear
- CNC aluminium housing
- Brushless DC motor
- DC12V rated voltage
- Supports 3S Lipo battery direct drive
- Ideal for 700 to 800 class helicopters
Technical details of the swashplate servos HLS3008-12:
- Operating voltage [V]: 8.4 - 13.0
- Torque [kgf.cm][kgf.cm][kgf.cm] @ 13.0V: 32.0
- Response time [s/60°] @ 8.4V: 0.11
- Response time [s/60°]@12.0V: 0.08
- Actuation time [s/60°]@13.0V: 0.07
- Width [mm][mm][mm]: 40.0
- Weight [g]: 72.0
- Motor type: Brushless
- Frequency range: 760us/560Hz, 450us-1050us
- Gear type: Steel
- Bearing type: 6BB / HLS
- Gearing: 25T-6
- Servo type: Standard
- Electronics: Digital
- Position sensor: Potentiometer
- Waterproof: No
- Soft start: Programmable
- Programmable: Yes
- Manufacturer: KST
Technical details of the tail servo HLS1535-12:
- Operating voltage [V]: 8.4 – 13.0
- Torque [kgf.cm][kgf.cm][kgf.cm]@13.0V: 16.0
- Positioning time [s/60°]@8.4V: 0.050
- Positioning time [s/60°]@12.0V: 0.035
- Positioning time [s/60°]@13.0V: 0.030
- Width [mm][mm][mm]: 40.0
- Weight [g]: 72.0
- Motor type: Brushless
- Frequency range: 760us/560Hz, 450us-1050us
- Gear type: Steel
- Bearing type: 6BB / HLS
- Gearing: 25T-6
- Servo type: Standard
- Electronics: Digital
- Position sensor: Potentiometer
- Waterproof: No
- Soft start: Programmable
- Programmable: Yes
- Manufacturer: KST
- Programmable with KST tool #3
