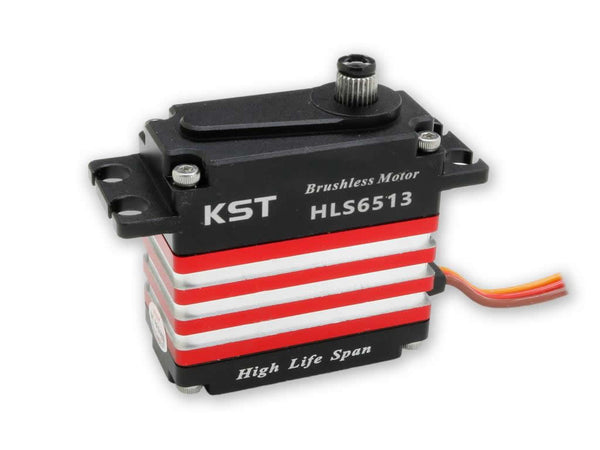

KST HLS6513 HV Servo 70kg/cm@8.4V : KST-2295

KST HLS6513 HV Servo 70kg/cm@8.4V : KST-2295

Experience the concentrated power and precision of the KST HLS6513 – the servo specially developed for jets and large models! With its extremely high actuating force and lightning-fast response time, the KST HLS6513 offers the control you need for demanding flight maneuvers. This servo is the perfect choice for pilots who rely on absolute reliability and maximum performance in every situation. Whether you are flying in competition or simply want to get the most out of your model, the KST HLS6513 always delivers impressive results. Rely on the KST HLS6513 – for unlimited power in your jets and large models! No compromises were made in the development of this servo. The most modern technologies were combined in this servo. The Hall sensor in combination with the 6-ball bearing HLS gear ensure exceptional durability. The gear remains backlash-free even over extended periods. The 4-pole brushless motor provides the necessary power to achieve extremely high actuating forces with fast response times. All this at a low weight. The HLS 6513 is the servo for the gifted 3D or jet pilot.

Technical details:

Operating voltage [V]: 6.0 - 8.4

Torque [kgf.cm][kgf.cm][kgf.cm] @ 8.4V: 70.0

Actuating time [s/60°] @ 6.0V: 0.16

Actuating time [s/60°] @ 7.4V: 0.13

Actuating time [s/60°] @ 8.4V: 0.11

Width [mm][mm][mm]: 40.0

Weight [g]: 75.0

Motor type: 4 Pole Brushless

Frequency range: 1520us/333Hz, 1000us-2000us

Gear type: Steel

Bearing type: 6BB / HLS

Toothing: 25T-6

Servo type: Standard

Electronics: Digital

Position sensor: Contactless / Hall sensor

Waterproof: No

Soft start: Programmable

Programmable: Yes

Manufacturer: KST

Programmable with KST Tool #3 and KST Tool #5.
