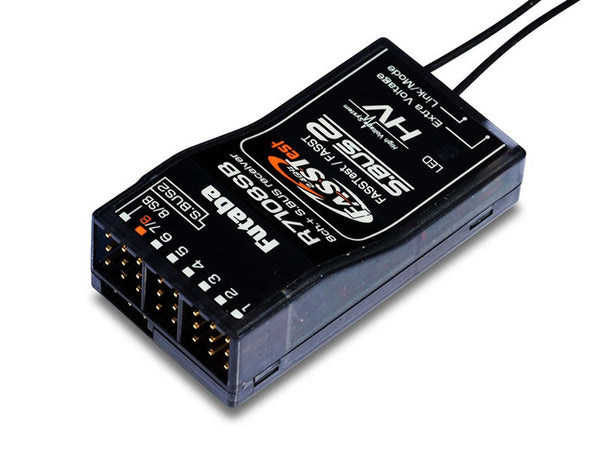

Futaba 8/18ch Rx FASST/FASSTest S-Bus (HV) Receiver (P-R7108SB)

Futaba 8/18ch Rx FASST/FASSTest S-Bus (HV) Receiver (P-R7108SB)

The R7108SB is a FASSTest telemetry enabled receiver, a high-voltage design that operates up to 8 channels using the 8 standard PWM outputs or up to 18 channels (16 proportional + 2 digital) using the S-Bus port.

The R7108SB may also be switched to the FASST (Multi-ch/7-ch) system that operates without telemetry.

It features bi-directional communication with a FASSTest transmitter using the S.Bus2 port. Using the S.Bus port, an impressive array of telemetry sensors may be used. It also includes both standard PWM output ports (channels 1-8) and S.Bus output ports.

Specification:

Fail Safe: Yes

Modulation: FASST (Mulit-Ch/7 Ch Modes)

Modulation: FASSTest (12ch, 18ch Modes),

S.BUS: S.Bus and S.Bus2

Weight: 10.9g (0.38oz)

Channels: 8 PWM (18 S.Bus)

Dimensions: 24.9 x 47.3 x 14.3mm

Voltage: 3.7 - 7.4V (3.5 - 8.4V Range)
