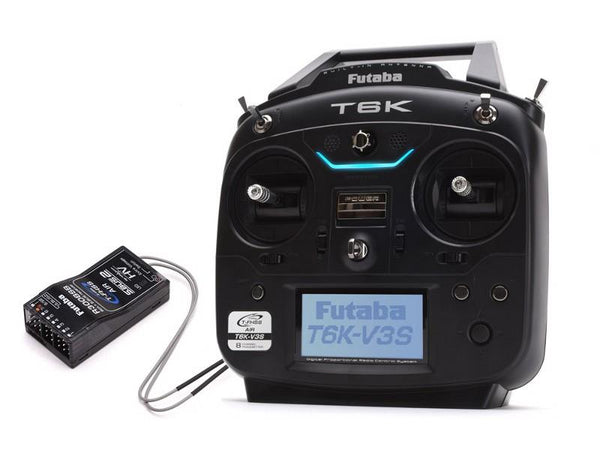

Futaba T6K V3 - 8 Channel 2.4GHz T-FHSS (Dry) & R3008SB Combo (Mode 2) : P-CB6K3/L
With the latest V3.0 software update the T6K is capable of operating up to 8 channels and now comes complete with the R3008SB receiver.
What else is new in the V3S version?
The T6K-V3S has an additional aileron mix for glider models without motor, acting on channels 1 and 3. For gliders, a total of 4 flight conditions can now be programmed. The trim mixer now also includes the rudder. Two independent stopwatches / timers are now available. The top right toggle switch is now a 3 position switch and in the Helicopter Menu, many governor functions can be adjusted directly from the transmitter.
The Futaba T6K is the perfect entry/sport level radio for aircraft and helicopter pilots. This stylish, stealth looking transmitter features a clean in-built aerial, easy jog dial programming and a backlit LCD screen for ease of use, however the T6K is not only about style, it also includes many features you would normally expect in high-end transmitters.
Designed to take full advantage of Futaba's popular T-FHSS telemetry system so a wide array of data can be monitored in flight (on screen or using the in-built speaker) including as standard receiver battery voltage and external battery voltage, whilst temperature, RPM, altitude and even a variometer sensors are available as options . The T6K is also capable of using S.Bus/S.Bus2 servos which can be easily programmed via the transmitter, whilst these and standard servos can all be used with the supplied R3008SB receiver.
- S-FHSS/T-FHSS selectable
- Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
- Built-in antenna
- S.Bus/S.Bus2 servo setting functions programmable through the transmitter
- Preset vibration alarms
- 30 model memory
- 8-character model/user naming
- Programmable mixes for airplanes, helicopters, gliders and multi-rotors
- Digital trims with variable step settings
- Adjustable stick length and tension
- Changeable switch/VR position and AUX channel function
- Throttle position warning
- Backlit 128x64 DOT LCD screen with adjustable display contrast
- Software updateable through the CIU-2
- Screen Lock
- Earphone/S.Bus/Trainer jacks
- Assignable switches (three 3-position, one 2-position)
- Range Check
- Program navigation bay with jog dial, +/- pads and end pad
- Data reset
- Model copy
- Selectable model type
- Fail Safe
- End Points
- Trim/Trim Resets/Trim Steps
- Sub Trim
- Servo Reversing
- Parameter functions
- Servo monitor/Test
- Wireless model data transfer
- Timer-System and Model (Up/Down)
- Trainer system
Airplane Functions
- Wing Type (5-wing, 2-tail)
- Throttle Cut
- Dual Rate/Expo
- Throttle Curve
- Idle down
- Gyro
- Aileron differential
- V-Tail
- Camber
- Air Brake
- Elevator-to-Flap mixing
- Flap-to-Elevator mixing
- Elevon mixing
- Glider Functions
- Wing Type (5-Wing, 2-Tail)
- Condition select
- Dual Rate/Expo
- Motor switch
- Gyro
- Aileron Differential
- V-tail
- Butterfly mixing
- Trim mixing
- Elevator-to-Camber mixing
- Camber mixing
- Aileron-to-Camber mixing
Helicopter Functions
- Swash type (6)
- Condition Select
- Throttle Cut
- Dual Rate/Expo
- Trim Offset
- Delay
- Gyro mixing
- Swash AFR
- Swash mixing
- Throttle Curve (5-point)
- Pitch Curve (5-point)
- Pitch-to-Rudder mixing
- Throttle Hold
- Hovering throttle
- Hovering pitch
Multicopter Functions
- Flight Mode
- Center alarm
- Dual Rate/Expo
- Throttle Curve
- Throttle Delay
- Gyro
Required for use: 4x 'AA' batteries for transmitter & suitable Rx battery
