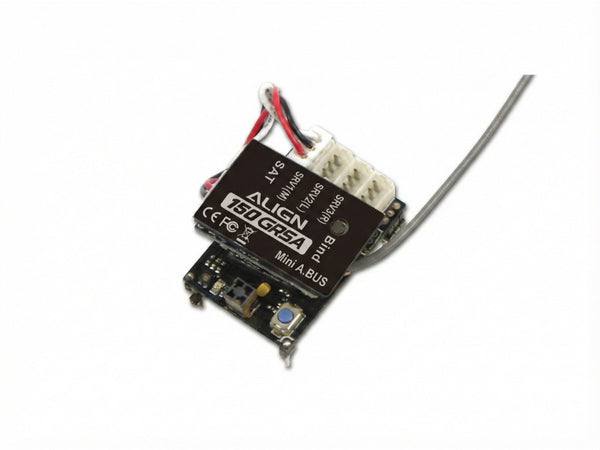

Align 150GRSA Flybarless System (A.BUS) - T-Rex 150 : HEG15006T

Use for T-REX 150/150X.

6-axis Gyro: 3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile and stable.

Attitude Auto-level Mode: While there is no stick input for helicopter, the heli will auto-level and still keep at horizontal position, which is suitable for beginners.

Rescue Mode: While wrong stick input is given or heli is in trouble, or you are in panic, activate the rescue mode by flipping a switch on the radio to keep helis at a level position.

3D Flying: Brand new DFCS(Direct Flight Control System)Contorller allows to control real time flight. Strong Cortex-M4 Processor allows T-REX 150 to fly just like big scale helicopters.

Built-in Receiver: ALIGN A.BUS.

Plug-in Receiver(Required): Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite

Must use with 150X Brushless ESC(HEG15003)

Specification:

Operating voltage range:5V-8.4V

Operating current consumption: <100mA @ 5V

Rotational detection rate: 2000°/sec

Rudder yaw detection rate: 2000°/sec

Sensor resolution:16BIT

Operating temperature:-20? ~ 65?

Operating humidity:0% ~ 95%

Swashplate Support : MODE H-1

Receiver Support : ALIGN A.BUS / DSM2 / DSMX / DMSS

Transmit Distance: In open space without interference <150M

Accessories:

150 Main Control Board x 1

A.BUS Receiver x 1

(Without ESC)
