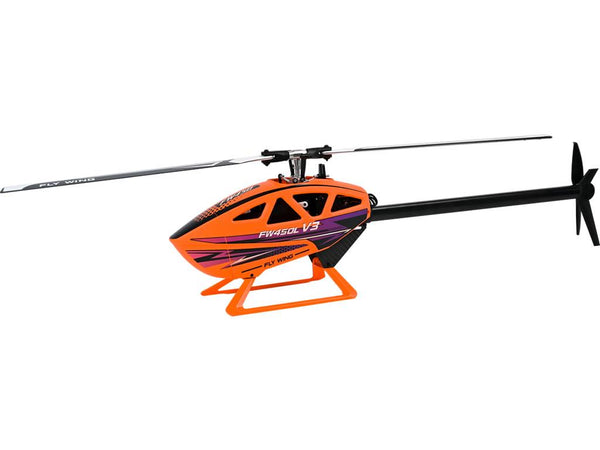

Flywing FW450L ACE RC Smart GPS Helicopter : FW450L
Advanced GPS-Enabled Helicopter with 20+ Minute Flight Time
Includes:
- 1x Flywing 450L Helicopter
- 1x Transmitter
- 1x 4S 5000mAh LiPo battery
- 1x Charger
- 1x Tool set
- 1x Data cable
- 1x User Manual
Please note: The model is packaged with the tail boom removed from the body of the helicopter. You will need to install the boom and connect up the tail motor wiring.
Product Description
The FW450L-V3 is an advanced smart helicopter designed to be easier to fly than traditional RC helicopters. Equipped with a new M10N positioning system and high-precision IMU attitude calculation unit with barometer, this helicopter offers an almost drone-like flying experience in GPS mode. The aircraft features a "push stick to go, release stick to stop" operation that makes it accessible to both beginners and experienced pilots.
This helicopter features a 16V high-power brushless motor configuration that delivers superior performance compared to traditional 12V systems. Combined with an ESC optimised for motor characteristics, flight efficiency is greatly improved, providing over 20 minutes of flight time.
Key Features
- M10N GPS positioning with Beidou support
- 20+ minute ultra-long flight time
- 16V high-power brushless motor system
- One-key return and low-voltage protection
- Smart acrobatic mode with automatic invert
- GPS mode for stable hovering
- 3D manual mode for advanced aerobatics
- Auto route learning (figure-8 and circle patterns)
- High-performance servo with 4KG torque
- Modular design for easy maintenance
- Flight controller suspension damping
- One-key inverted flight capability
- Flight Modes
GPS Mode
- Similar logic to traditional UAVs
- M10N positioning assistance
- Air pressure altitude assistance
- Fixed-point and altitude hovering
- Push rod to go, release rod to stop operation
Smart Acrobatic Mode
- Automatic invert and hover by switch flip
- Learn inverted flight methods
- Expert invert flight options via software
3D Manual Mode
- No flight angle limitations
- Greater operational freedom
- Inverted flight, spin flip capabilities
- Full aerobatic flight tension
Auto Route Mode
- Learn and repeat flight routes
- Figure-8 route patterns
- Circle route patterns
- Rudder control for nose direction during auto flight
Technical Specifications
- Model: FW450L-V3
- Length: 700mm
- Height: 195mm
- Width: 120mm
- Weight (no battery): 790g
- Package Weight: 3.05kg
- Package Size: 54 x 31.5 x 17cm
- Main Rotor Diameter: 805mm
- Main Blade Length: 360mm
- Tail Blade Length: 154mm
- Main Motor Gear: 13T
- Transmission Main Gear: 81T
- Main Motor: Brushless Motor (2816)
- Tail Motor: Brushless Motor (2008)
- ESC: 60A Double Brushless ESC
- Flight Time: 20+ minutes
Technical Details
Power System
- 16V brushless motor configuration
- ESC optimised for motor characteristics
- Greatly improved flight efficiency
- High-speed brushless tail motor
- Specially designed high-efficiency tail rotor
Control System
- High-performance servo with coreless motor
- 4KG torque, 0.12sec/60° response
- Elliptical output shaft design
- Metal gear material
- No servo arm debugging required
GPS & Navigation
- M10N GPS positioning module
- Beidou positioning system support
- Omni-directional positioning technology
- 80% performance increase vs previous generation
- GPS Level accuracy: ±1.5m (GPS normal)
- Vertical accuracy: ±0.5m (GPS normal)
Flight Control
- High-precision IMU attitude calculation
- Barometer for altitude assistance
- Suspension damping system
- Customised EPDM damping materials
- Advanced filtering algorithm
Remote Control
- High-precision remote control
- Approximately 1km radio distance
- Double rocker return design
- Clear function layout
- SBUS protocol support for 9+ channels
Safety Features
- One-key return function
- Low-voltage automatic return
- Failsafe protection
- Automatic landing at takeoff point
- Reserved power monitoring for safe return
- Manual mode one-key to safe
Software Features
- Intuitive and easy-to-use interface
- Helicopter power adjustment
- Reaction speed customisation
- Compass calibration
- Flight style personalisation
- Tutorial video integration
- Professional throttle control
Design Features
- Modular design for easy maintenance
- Quick battery compartment removal
- Battery replacement without removing rain shelter
- Quick detachable tailpipe design
- Easy portability and transport
- Four-blade rotor head upgrade available
