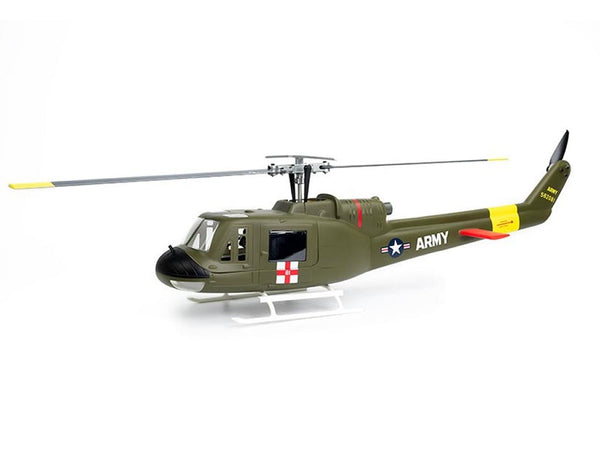

FlyWing UH1 RTF (Red) : FW-UH1-V4-RTF-R

FlyWingFlyWing UH1 RTF (Red) : FW-UH1-V4-RTF-R

Please note: The "Red" version of this model is mostly green, with a red horizontal fin.

The military number of the UH-1 helicopter was changed from HU-ii963 to UH-1 "Huey" General purpose helicopter, nicknamed "American daddy", but the commonly used nickname is "Iroquois". It is mainly used by the Army, as well as the Air Force and Navy.

Efficient power configuration

20+ Minute Flight Time

16V brushless motor configuration. Compared to traditional 12V, it has stronger power. Combined with ESC optimized for the characteristics of the motor, the flight efficiency is greatly improved.

High performance servo

High performance servo with coreless motor. 4KG. cm torque, 0.12sec/60° high speed response. Helicopter responds quickly. Elliptical output shaft design to always fit the servo horn in the correct alignment.

High-Speed Brushless Tail Motor

The tail adopts a high-speed brushless motor, paired with a specially designed high-efficiency tail rotor, with sufficient power and fast response.

Easy maintenance

Plug-in cabin door for easy access to battery

Scale metal rotor head.

Adopting a metal rotor head design, paired with 3D printed decorative parts.

Stable flying experience

M10 GPS positioning mode

The operation method is similar to traditional drones. It supports M10 GPS positioning assistance and barometric altitude assistance. Can hover at a fixed location and height. On open ground, push the transmitter stock to fly and release it to stop. Easy to operate, you can fly freely without panic.

Automatic fly mode

The helicopter flies along a horizontal flight path in the air, forming a figure of 8-shape or a circular shape. During automatic flight, the rudder can be used to control the direction of the nose and achieve rotation in flight.

Multiple security protections

One key/low battery return

The UH-1 V4 has the functions of one switch return and low battery return. After taking off from an open-air venue, simply press the return switch and the helicopter will automatically return to the takeoff point and land. When the battery reaches the set voltage value, the helicopter will also automatically return. (The set residual voltage value needs to be sufficient for the helicopter to return).

High scale detail

Compared to V3, significant improvement in details

The UH-1 V4 features neatly arranged engraved lines, scale metal rotor heads, transparent cockpit covers, and highly restored paint. This makes the whole machine look closer to reality and instantly returns you to that turbulent era.

10 channel transmitter

The remote control range is about 1 kilometer, with nicely arranged and positioned switches, the function is clear, and it is equipped with a dual stick center sprung design, allowing you to release the sticks in flight to make the aircraft brake and hover. UH-V4 also supports 9-channel and above remote controls with third-party SBUS protocol, meeting your personalized usage needs.

Sensor damping design

Tailored EPDM shock-absorbing material is used to address the vibration characteristics of helicopters. The IMU attitude sensor is suspended in the flight control system to filter out most of the mechanical vibrations of the aircraft. With advanced filtering algorithms, the stability of the aircraft is improved.

M10 GPS Module

The all-new M10 GPS positioning module, combined with omnidirectional positioning technology, brings faster satellite search speed, better signal quality, making helicopter hovering more stable, flight more responsive, and return to home more accurate.

Specification:

• Length: 750mm
• Height: 220mm
• Width: 170mm
• Weight (no battery): 869g
• Main rotor diameter: 810mm
• Main rotor blade: 370mm
• Tail rotor diameter: 125mm
• Pinion gear: 13T
• Main gear: 81T
• Main motor: Brushless motor 3508
• Tail motor: Brushless motor
• ESC: 60A Double brushless ESC

Flight modes

• GPS mode
• 3D manual mode
• One key return to home
• Low power return to home
• Semi-auto flight (O figure, 8 Figure)

Positioning Module: Multi-mode GPS M10

Hovering precision

• Level: +/- 1.5m (GPS normal)
• Vertical: +/- 0.5m (GPS normal)

Included:

• 1x Flywing UH-1 Huey V4
• 1x Battery 14.8V, 3000mah, XT60 Connector
• 1x Transmitter
• 1x Receiver (installed on the helicopter)
• 1x Balance Charger (UK plug adaptor required - 2 pin plug is supplied on the charger power cable)
• 1x Quick start guide
• 1x Screwdriver
• 1x Type-C USB cable
