XGuard Plus V2 C82 Supercapacitor Power Backup System With Telemetry : AAVXG0117

XGuard Plus V2 C82 Supercapacitor Power Backup System with Telemetry, Alarm, Remote Off & Radio Switch ports : AAVXG0117

Overview:

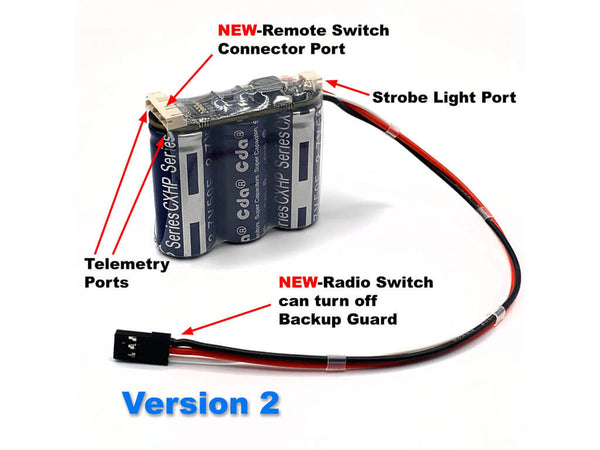

• Backup Power Pack with 82 Farad capacitors with Telemetry, Alarm, Remote Off & Radio Switch ports
• Two Telemetry ports
• One Remote Off port
• One Alarm port
• Servo Back EMF protector
• Static electricity protector

Details:

The red light is activated only when there is current consumption.

When you disconnect the power, if there is no consumption the unit will not sense a drop in voltage so it won’t trigger on. When you’re flying, the simple forces of the blades make the consumption constant so it will trigger instantly.

To activate the switch off function you need to press the off button while powering it up so you see all the LED lights flash three times.

You will always know if the radio switch feature is activated by looking at the number of times all the lights blink when powered up.

Please watch this video for more information.

How to connect to Futaba telemetry.

To connect to a Futaba System you need to buy a Futaba Temperature Sensor so that you can use it to simulate a temperature alarm to indicate that the XGuard Plus has been activated.

Manual:

Download the product manual here.
