Aileron Carbon Fibre Linkage Rod Set : H70068T

Aileron Carbon Fibre Linkage Rod Set : H70068T

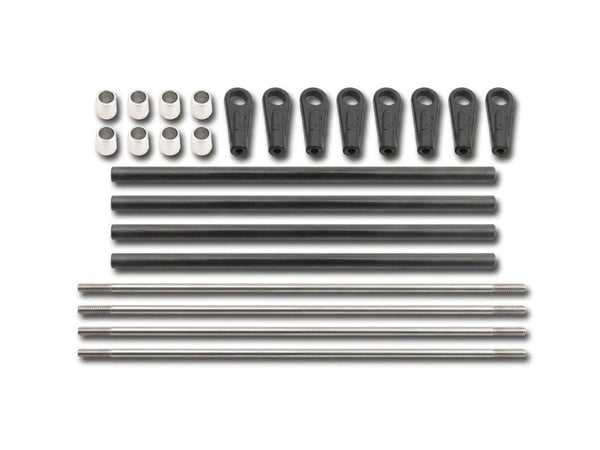

Use for T-REX 700E

• 700E Linkage x 4(2x110mm)
• 700E Aileron Control rod Carbon Fiber Shaft x 8(4x5.4x6.5mm)
• 700E Aileron Control rod Carbon Fiber Tube x 4(2.2x3.9x96mm)
• 700N Ball Link x 8(5x20.5mm)

Instructions

1.Mix thoroughly suitable amount of epoxy.

2.Apply generous amount of epoxy on the tips of carbon tube after sliding over the linkage rod.
(Note: for quick drying epoxy, work fast as it must be applied prior to curing)

3.Slide the carbon end caps on both sides of the carbon tube.

4.Thread the ball links onto the linkage rod until the base to base length is 97.5mm.

5.If gap exists between the ball link and end caps after correct length has been achieved, slide the end caps outwards to cover the gaps (note: must be done before epoxy cures)

6.Wipe away excess epoxy and set it aside to cure.

7.Pop the finished link back between aileron servo horn and bell crank.
